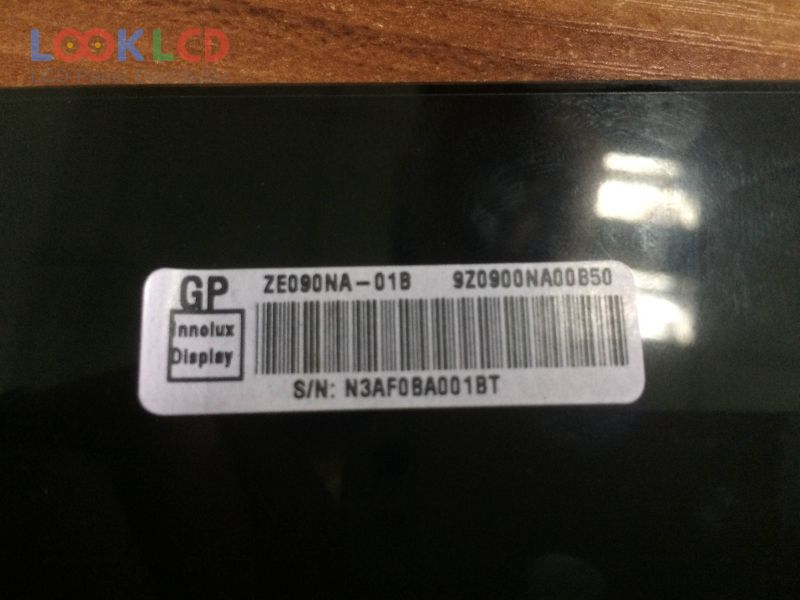

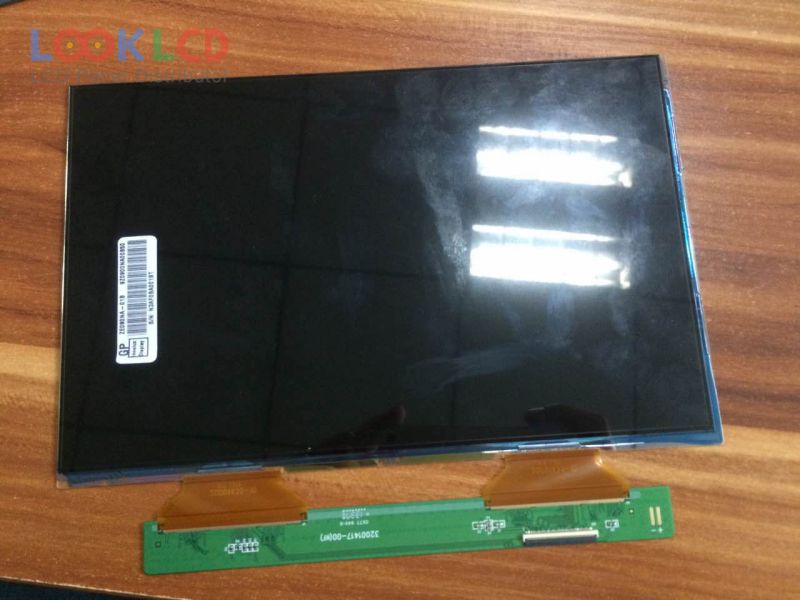

| Part Number | ZE090NA-01B |
| Mark | Innolux |
| Gréisst | 9.0 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 700:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | ZE090NA-01B |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 9.0 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 193.92×121.2 mm |
| skizzéieren | 206.76×135.06×1.43 mm |
| Uewerfläch | |
| Glas Déift | 0.50+0.50 mm |
| transmissivitéit | 3.39% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193170% |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/50/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins |
| Input Volt | 3.3/11.0/20.0/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| Applikatioun | PAD |
