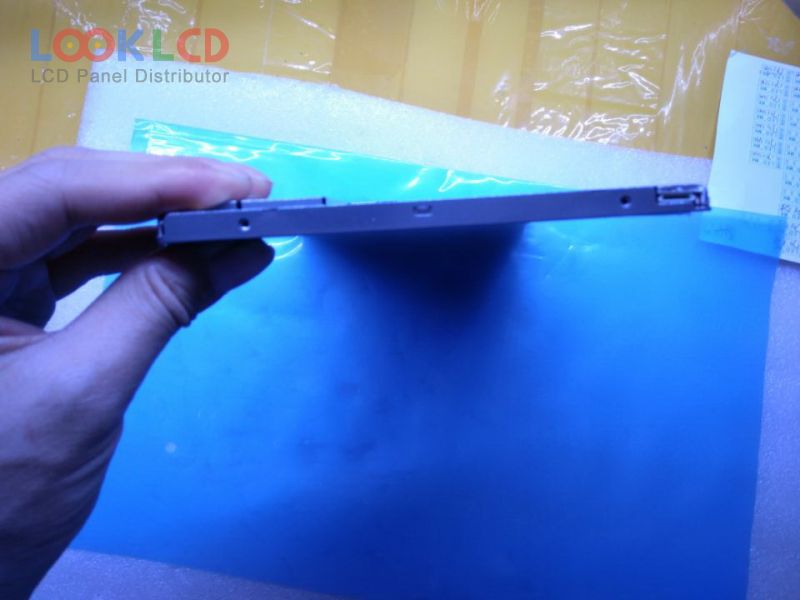

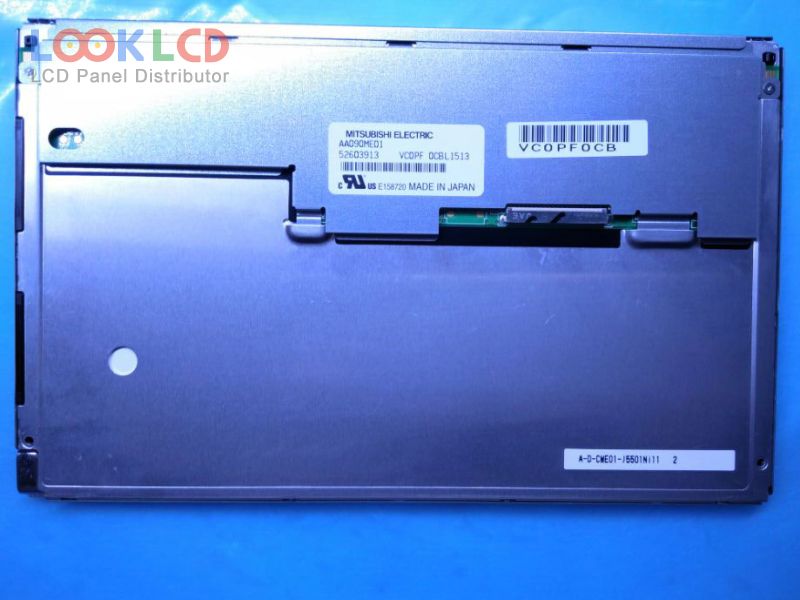

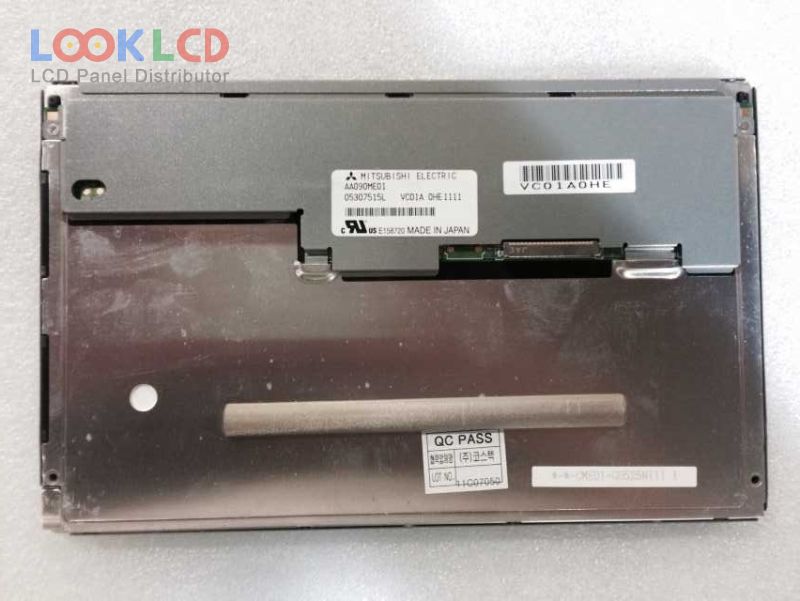

| Part Number | AA090ME01 |
| Mark | Mitsubishi |
| Gréisst | 9.0 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 900:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | Mitsubishi |
| Panel Modell | AA090ME01 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 9.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 196.8×118.08 mm |
| skizzéieren | 219×136.2×10 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 12/12 (Typ.)(Tr/Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S2PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
| AA090AA01 | Mitsubishi | 9.0 | 960×540 |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| AT090TN12 V.3 | Innolux | 9.0 | 800×480 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| C090EAN01.1 | AUO | 9.0 | 1280×720 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| TX23D12VM0CAA | KOE | 9.0 | 800×480 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
| AA104XG12 | Mitsubishi | 10.4 | 1024×768 |
| DMF-50773NB-FW | Kyocera | 5.4 | 240×128 |
| EL240.64-SD1 | PLANAR | 5.2 | 240×64 |
| G104V1-T03 | Innolux | 10.4 | 640×480 |
| LM-CG53-22NDK | SANYO | 10.4 | 640×480 |
| LQ121S1DG43 | SHARP | 12.1 | 800×600 |
| NL6448BC33-49 | NLT | 10.4 | 640×480 |
| RGS10128032WR006 | RiTdisplay | 1.0 | 128×32 |
| TX18D30VM2FAA | KOE | 7.0 | 800×480 |
| TX18D37VM0AQA | KOE | 7.0 | 800×480 |
