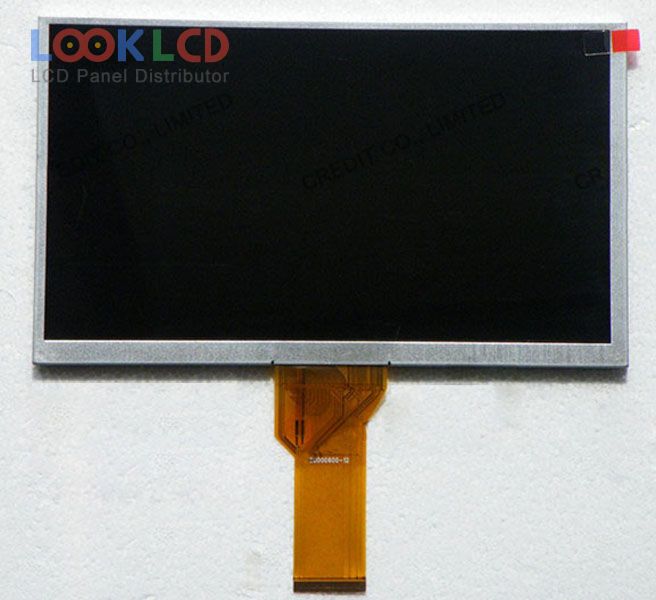

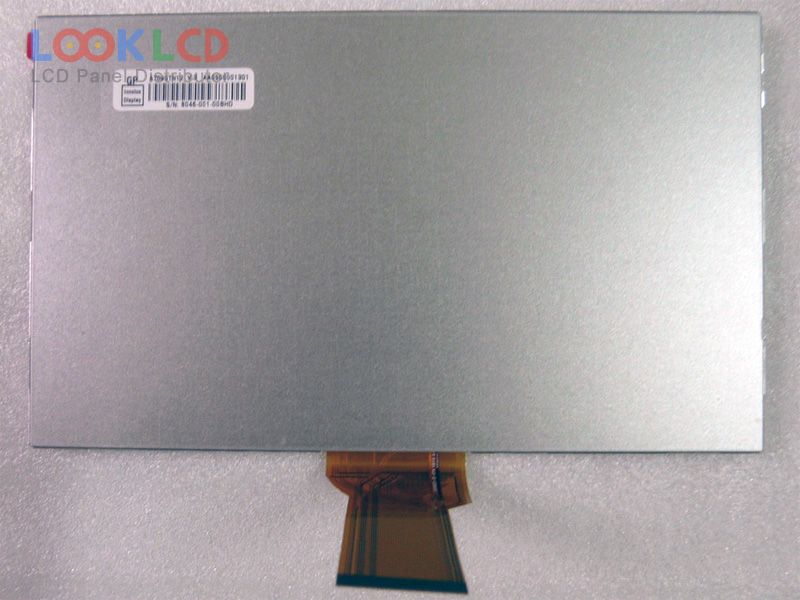

| Part Number | AT090TN12 V.3 |
| Mark | Innolux |
| Gréisst | 9.0 |
| Applikatioun | DPF |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 500:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | INNOLUX |
| Panel Modell | AT090TN12 V.3 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 9.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 198×111.696 mm |
| skizzéieren | 211.1×126.5 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K/16.2M (6-bit / 6-bit + Dithering), CIE193150% |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 3S11PWLEDWithout Driver |
| Signal Interface | TTL (1 ch, 6/8-bit), 50 pins |
| Input Volt | 3.3/10.4/17.0/-5.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Applikatioun | DPF |
