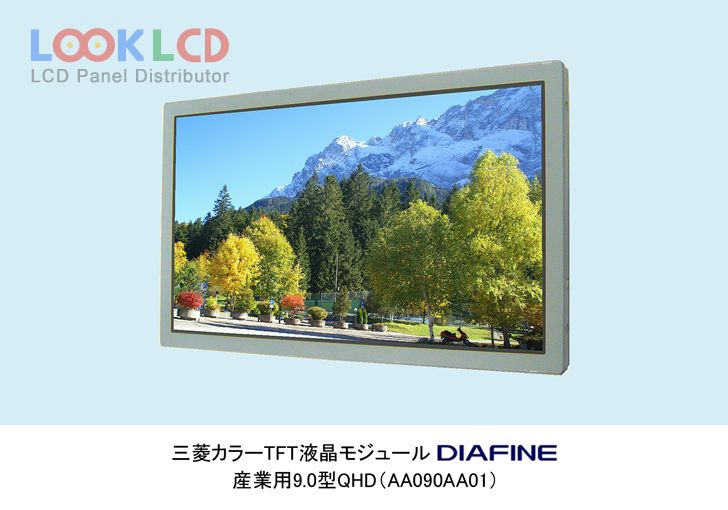

| Part Number | AA090AA01 |
| Mark | Mitsubishi |
| Gréisst | 9.0 |
| Applikatioun | IA |
| Opléisung | 960×540 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | Mitsubishi |
| Panel Modell | AA090AA01 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 9.0 inch |
| Resolutioun | 960(RGB)×540 , qHD |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 198.72×111.78 mm |
| skizzéieren | 217×130 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 8/8 (Typ.)(Tr/Td); 8 (Typ.)(G to G) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
| AA090AA01 | Mitsubishi | 9.0 | 960×540 |
| AA090MC01 | Mitsubishi | 9.0 | 800×480 |
| AA090ME01 | Mitsubishi | 9.0 | 800×480 |
| LTA090B230F | TOSHIBA | 9.0 | 536×328 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| NL192108AC10-01D | NLT | 9.0 | 1920×1080 |
| NL6448BC28-01 | NLT | 9.0 | 640×480 |
| T-55561D090J-LW-A-AAN | Kyocera | 9.0 | 800×480 |
| ZE090NA-01B | Innolux | 9.0 | 1280×800 |
| AM-640480G2TNQW-00H-F | AMPIRE | 5.7 | 640×480 |
| EL240.128.45 INT | PLANAR | 4.8 | 240×128 |
| KCG075VG2BE-G00 | Kyocera | 7.5 | 640×480 |
| LTA104S2-L01 | Samsung | 10.4 | 800×600 |
| M190EG01 V3 | AUO | 19.0 | 1280×1024 |
| NL192108AC10-01D | NLT | 9.0 | 1920×1080 |
| NL6448BC33-63D | NLT | 10.4 | 640×480 |
| NL8060BC31-41E | NLT | 12.1 | 800×600 |
| RGS32256064YH001 | RiTdisplay | 3.2 | 256×64 |
| UG-2864HLBEG01 | WiseChip | 0.96 | 128×64 |
