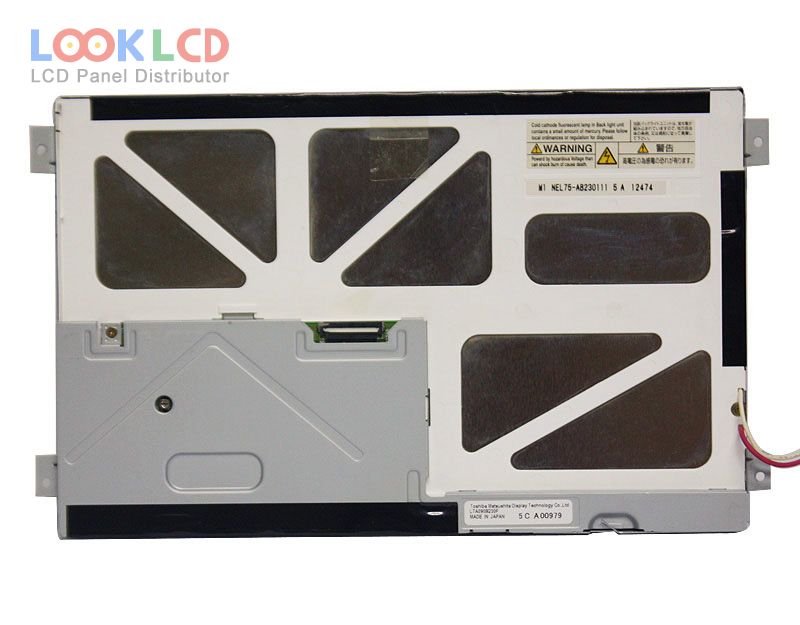

| Part Number | LTA090B230F |
| Mark | TOSHIBA |
| Gréisst | 9.0 |
| Applikatioun | IA |
| Opléisung | 536×328 |
| Zesummesetzung | LCM |
| Hellegkeet | 480 |
| CR | 250:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | Toshiba Matsushita |
| Panel Modell | LTA090B230F |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 9.0 inch |
| Resolutioun | 536(RGB)×328 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 196.18×120.05 mm |
| skizzéieren | 212.2×135.2 mm |
| Uewerfläch | Clear |
| Hellegkeet | 480 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 70/40 (Max.)(Tr/Td) |
| Vue Wénkel | 80/80/45/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
