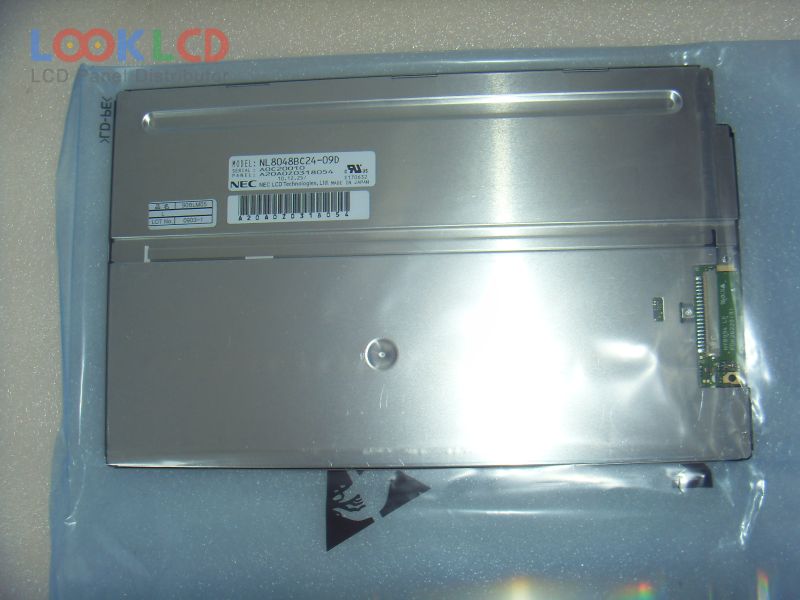

| Part Number | NL8048BC24-09D |
| Mark | NLT |
| Gréisst | 9.0 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 800:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | NEC |
| Panel Modell | NL8048BC24-09D |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 9.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | UA-SFT, Normally Black, Transmissive |
| aktiv Beräich | 196.8×118.08 mm |
| skizzéieren | 220.5×136.5×8.7 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193160% |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3 stringsWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
