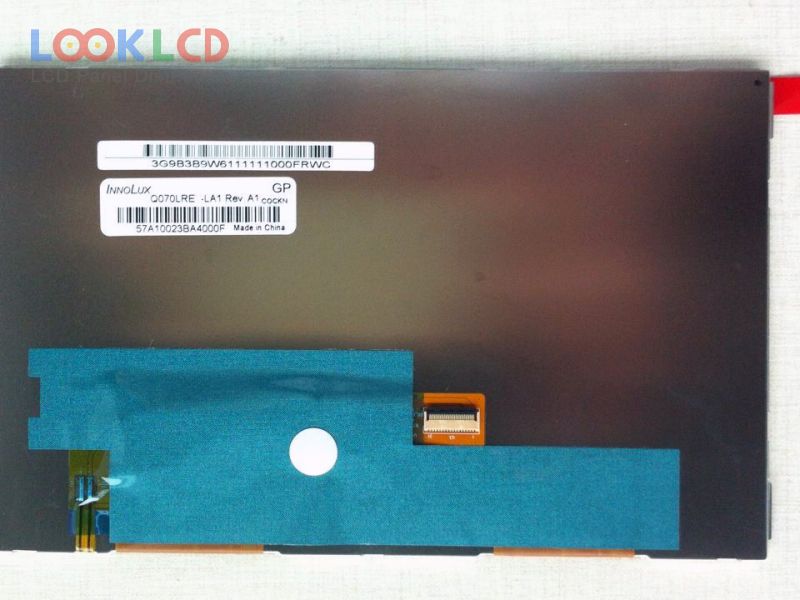

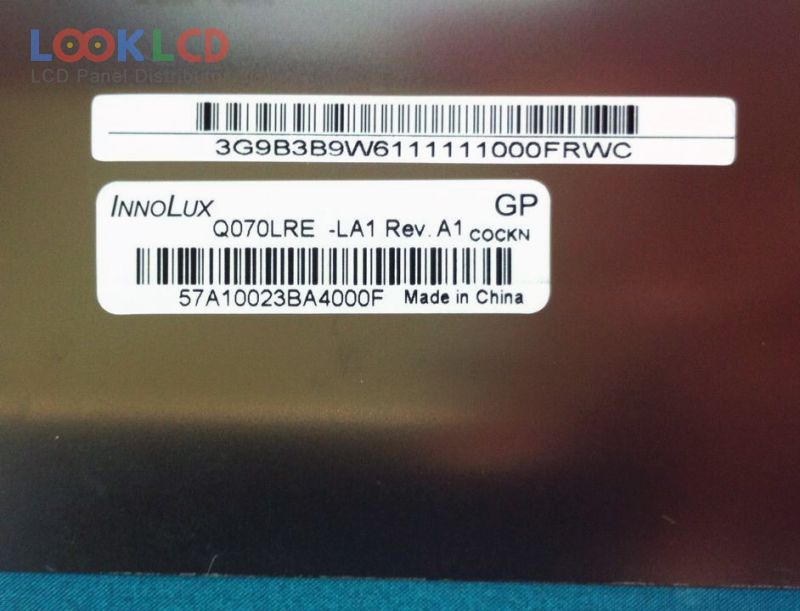

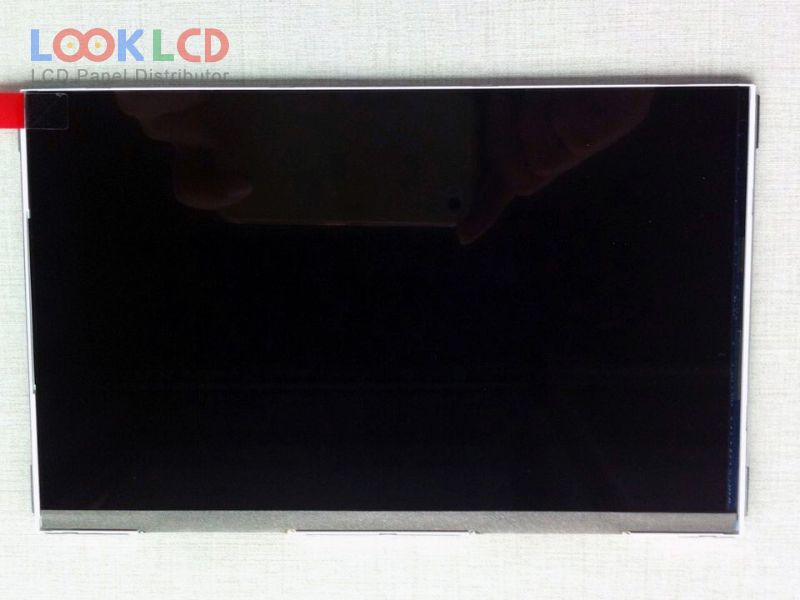

| Part Number | Q070LRE-LA1 |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | PAD |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 700:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | Q070LRE-LA1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 153.6×90 mm |
| skizzéieren | 164.1×102.6×3.25 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4S5PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 31 pins |
| Input Volt | 3.7V (Typ.) |
| Applikatioun | PAD |
| CLAA070WP06 XG | CPT | 7.0 | 800×1280 |
| DLC0700DDG-4 | Other | 7.0 | 800×480 |
| DLC0700FDG-T-6 | Other | 7.0 | 800×480 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| HJ070IA-04K | Innolux | 7.0 | 800×1280 |
| LA070WV1-TH01 | LG Display | 7.0 | 800×480 |
| PW070XUA | E Ink | 7.0 | 480×234 |
| Q070LRE-L81 | Innolux | 7.0 | 1024×600 |
| Q070LRE-LA1 | Innolux | 7.0 | 1024×600 |
| Q070LRE-LB1 | Innolux | 7.0 | 1024×600 |
| AT090TN23 | Innolux | 9.0 | 1280×800 |
| B080UAN01.4 | AUO | 8.0 | 1200×1920 |
| B101EAN01.1 | AUO | 10.1 | 1280×800 |
| BP082WX1-100 | BOE | 8.2 | 1280×800 |
| CLAA070NQ01 XN | CPT | 7.0 | 1024×600 |
| CLAA101WH13LE | CPT | 10.1 | 1280×800 |
| LP097QX3-SPAV | LG Display | 9.7 | 1536×2048 |
| LTL090CL01-002 | Samsung | 9.0 | 1920×1280 |
| N070ICE-GB1 | Innolux | 7.0 | 800×1280 |
| VVX11F009G00 | Panasonic | 11.6 | 1920×1080 |
