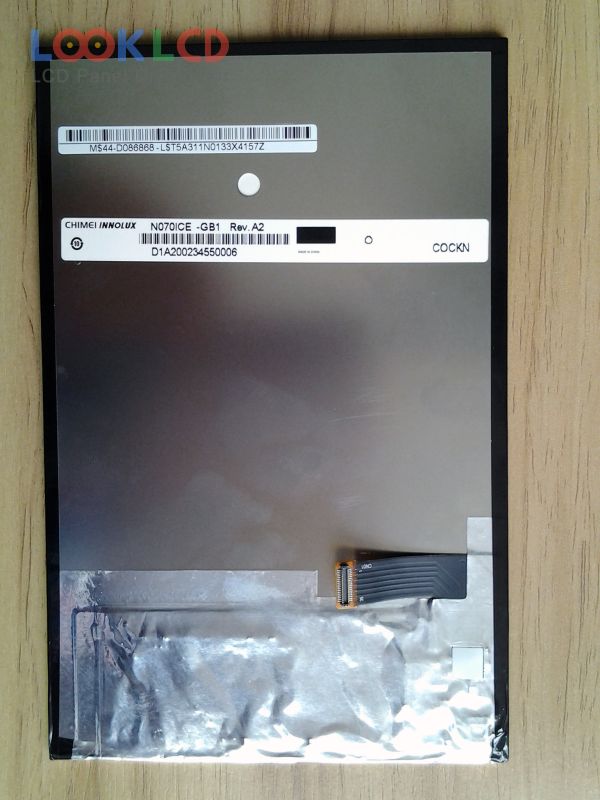

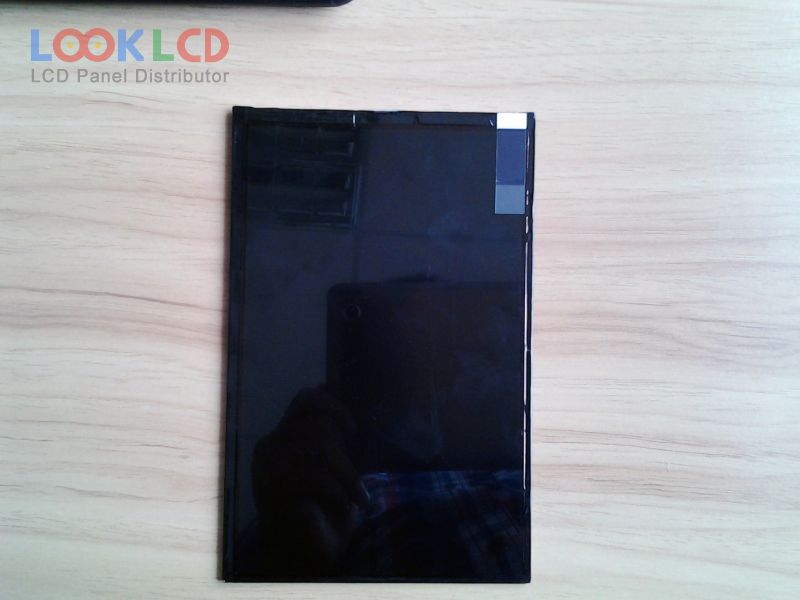

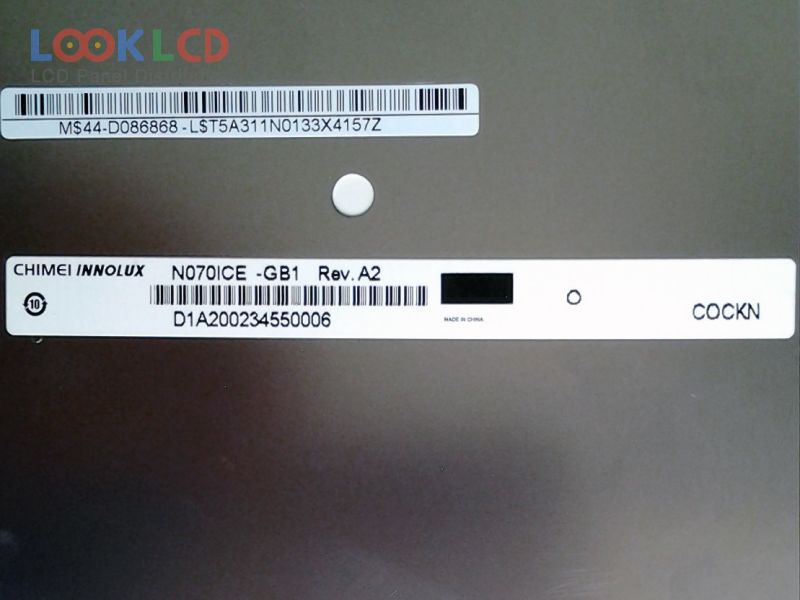

| Part Number | N070ICE-GB1 |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | PAD |
| Opléisung | 800×1280 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | INNOLUX |
| Panel Modell | N070ICE-GB1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×1280 , WXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 94.2×150.72 mm |
| skizzéieren | 105.62×163.27×3.95 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit) |
| Äntwert Zäit | 14/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S6PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 36 pins |
| Input Volt | 1.8/3.3V (Typ.)(VCC/VDD) |
| Applikatioun | PAD |
| CLAA069LB03CW | CPT | 7.0 | 800×480 |
| N070ICE-G02 Rev.A2 | Innolux | 7.0 | 800×1280 |
| N070ICE-G02 Rev.C3 | Innolux | 7.0 | 800×1280 |
| N070ICE-GB1 | Innolux | 7.0 | 800×1280 |
| N070ICE-GB2 | Innolux | 7.0 | 800×1280 |
| N070ICG-LD1 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD3 | Innolux | 7.0 | 1280×800 |
| N070ICG-LD4 | Innolux | 7.0 | 1280×800 |
| N070ICN-GB1 | Innolux | 7.0 | 800×1280 |
| TR-LM7WR3PS | Panasonic | 7.0 | 480×234 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| B116XAN03.1 HW0A | AUO | 11.6 | 1366×768 |
| ED090NA-01D | Innolux | 9.0 | 1280×800 |
| HSD101PWW1-A00-C40 | HannStar | 10.1 | 1280×800 |
| HV089WU1-1E0 | HYDIS | 8.9 | 1920×1200 |
| LP097QX1-SPA2 | LG Display | 9.7 | 2048×1536 |
| LTL090CL01-W02 | Samsung | 9.0 | 1920×1280 |
| LTL101AL03-W01 | Samsung | 10.1 | 1280×800 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| LTL106AL01-001 | Samsung | 10.6 | 1366×768 |
