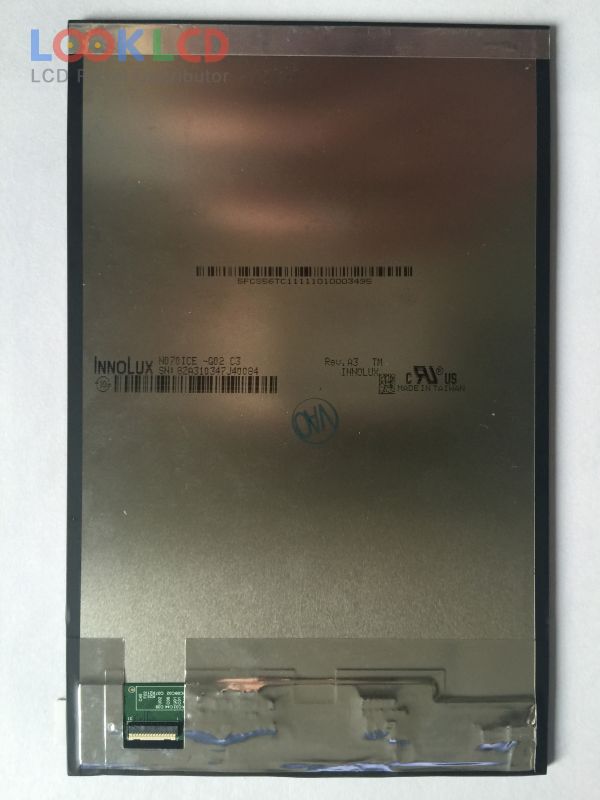

N070ICE-G02 Rev.C3

N070ICE-G02 Rev.C3
N070ICE-G02 Rev.C3 thumb
Mark
Innolux
Gréisst
7.0
Applikatioun
PAD
Opléisung
800×1280
Zesummesetzung
LCM
Hellegkeet
300
CR
800:1
Faarwen
16.7M
Backlight
WLED
Interface
MIPI
In Stock
700
Spezifikatioune

Part Number N070ICE-G02 Rev.C3
MarkInnolux
Gréisst7.0
ApplikatiounPAD
Opléisung800×1280
ZesummesetzungLCM
Hellegkeet300
CR800:1
Faarwen16.7M
GéigeliichtWLED
InterfaceMIPI
Panel MarkINNOLUX
Panel ModellN070ICE-G02 Rev.C3
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst7.0 inch
Resolutioun800(RGB)×1280 , WXGA
Display ModusAAS, Normally Black, Transmissive
aktiv Beräich94.2×150.72 mm
skizzéieren103.5×162.22×4.51 mm
UewerflächGlare (Haze 0%), Hard coating (3H)
Hellegkeet300 cd/m² (Typ.)
Kontrast Verhältnis800:1 (Typ.)
weisen Faarwen16.7M (8-bit), CIE193160%
Äntwert Zäit11/9 (Typ.)(Tr/Td)
Vue Wénkel89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ3S6PWLEDWithout Driver
Signal InterfaceMIPI (4 data lanes), 31 pins
Input Volt1.8/3.3V (Typ.)(VDDI/VCI)
ApplikatiounPAD
