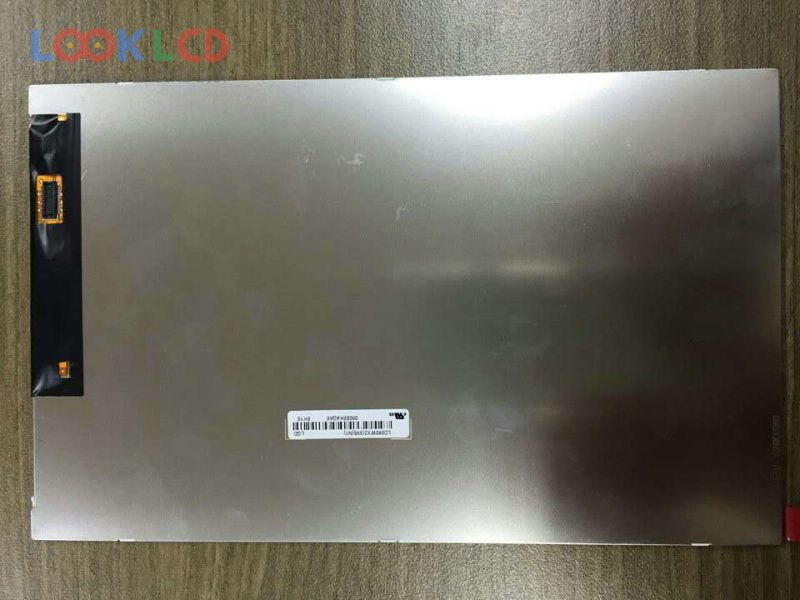

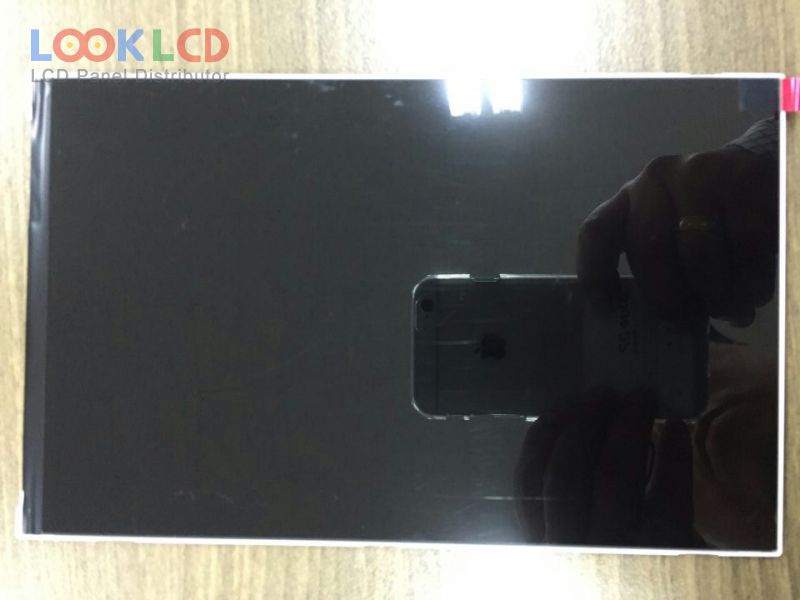

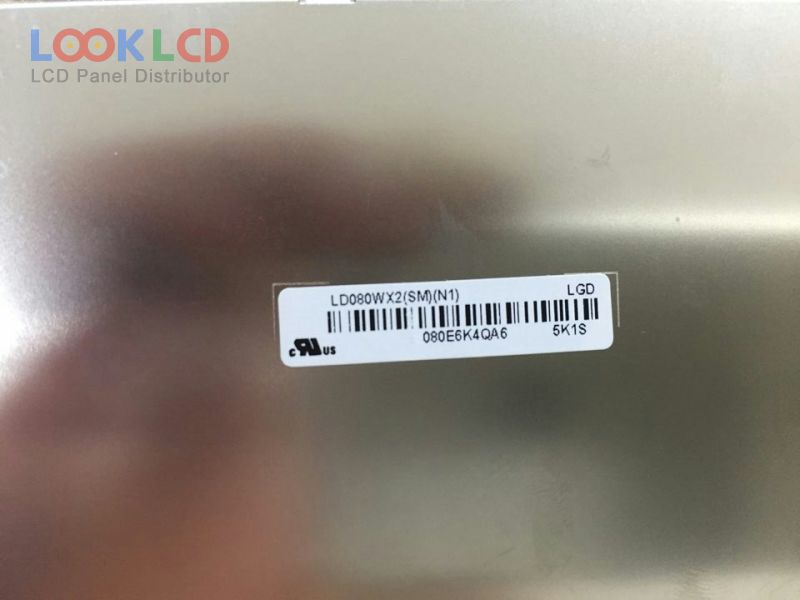

| Part Number | LD080WX2-SMN1 |
| Mark | LG Display |
| Gréisst | 8.0 |
| Applikatioun | PAD |
| Opléisung | 800×1280 |
| Zesummesetzung | LCM |
| Hellegkeet | 330 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | LG Display |
| Panel Modell | LD080WX2-SMN1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 800(RGB)×1280 , WXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 107.64×172.224 mm |
| skizzéieren | 114.6×184.55×4.25 mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 330 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S3PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 34 pins |
| Input Volt | 1.8/5.2/-5.2V (Typ.)(VDDI/AVDD/AVEE) |
