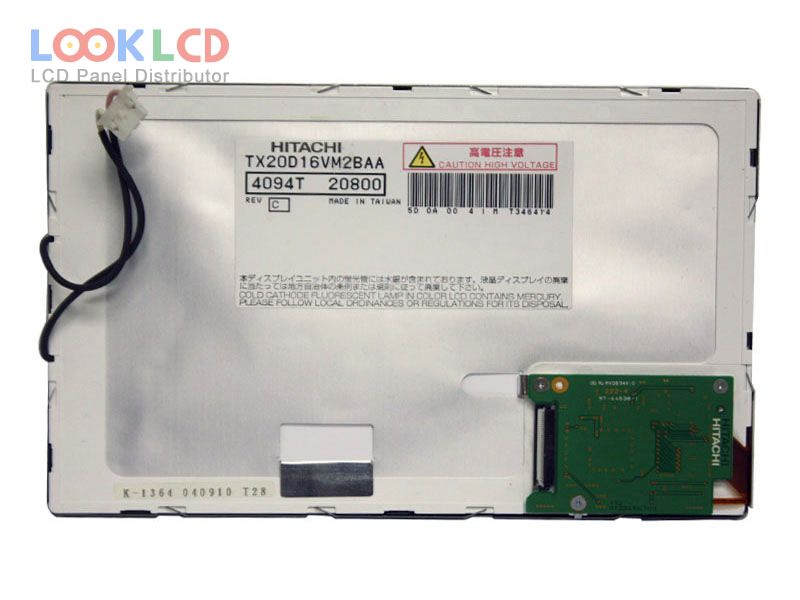

| Part Number | TX20D16VM2BAA |
| Mark | KOE |
| Gréisst | 8.0 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 200:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | HITACHI |
| Panel Modell | TX20D16VM2BAA |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 174×104.4 mm |
| skizzéieren | 189×120 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 200:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 20/10 (Typ.)(Tr/Td) |
| Vue Wénkel | 50/50/50/50 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
