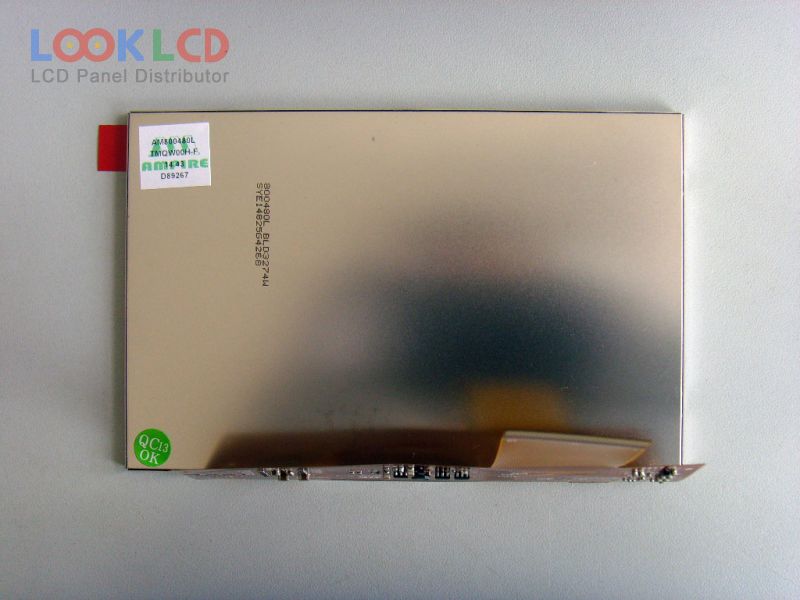

| Part Number | AM-800480LTMQW-00H-F |
| Mark | AMPIRE |
| Gréisst | 5.0 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 250:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | AMPIRE |
| Panel Modell | AM-800480LTMQW-00H-F |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 108×64.8 mm |
| skizzéieren | 119×77.1×3.41 mm |
| Uewerfläch | Glare (Haze 0%) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193152% |
| Äntwert Zäit | 15/35 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S6PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 45 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
