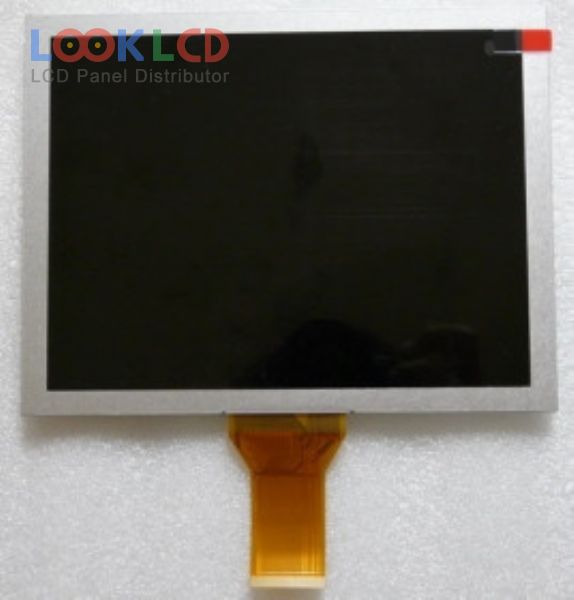

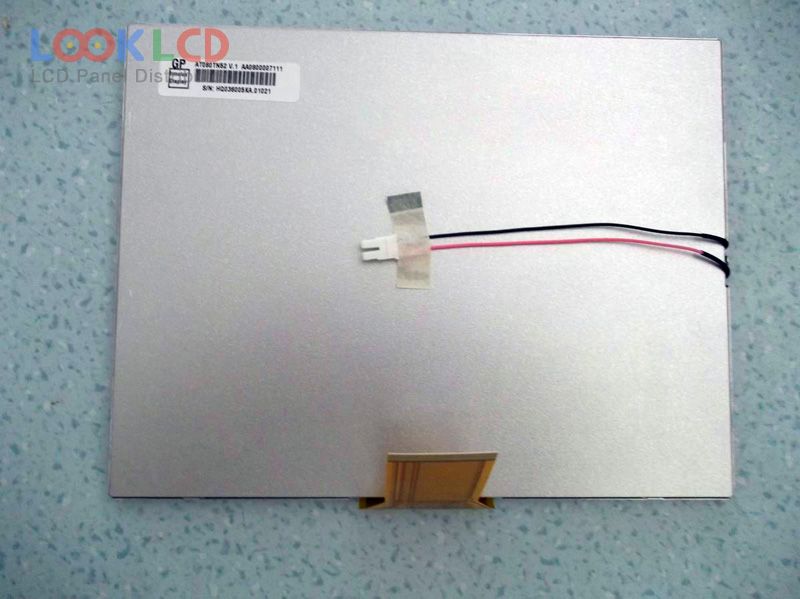

AT080TN52 V.1

AT080TN52 V.1
AT080TN52 V.1
AT080TN52 V.1
AT080TN52 V.1 thumb AT080TN52 V.1 thumb AT080TN52 V.1 thumb
Mark
Innolux
Gréisst
8.0
Applikatioun
DPF
Opléisung
800×600
Zesummesetzung
LCM
Hellegkeet
250
CR
500:1
Faarwen
262K/16.2M
Backlight
WLED
Interface
TTL
In Stock
277
Spezifikatioune

Part Number AT080TN52 V.1
MarkInnolux
Gréisst8.0
ApplikatiounDPF
Opléisung800×600
ZesummesetzungLCM
Hellegkeet250
CR500:1
Faarwen262K/16.2M
GéigeliichtWLED
InterfaceTTL
Panel MarkINNOLUX
Panel ModellAT080TN52 V.1 1 Compatible model
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst8.0 inch
Resolutioun800(RGB)×600 , SVGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich162×121.5 mm
skizzéieren183×141 mm
UewerflächAntiglare
Hellegkeet250 cd/m² (Typ.)
Kontrast Verhältnis500:1 (Typ.)
weisen Faarwen262K/16.2M (6-bit / 6-bit + Dithering)
Äntwert Zäit10/15 (Typ.)(Tr/Td)
Vue Wénkel70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
Lampe Typ3S9PWLEDWithout Driver
Signal InterfaceParallel RGB (1 ch, 6/8-bit), 50 pins
Input Volt3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
rohs:
ApplikatiounDPF
Famill Modell
AT080TN01 Innolux 8.0 800×480
AT080TN03 V.1 Innolux 8.0 800×480
AT080TN03 V.2 Innolux 8.0 800×480
AT080TN03 V.7 Innolux 8.0 800×480
AT080TN42 Innolux 8.0 800×600
AT080TN42 V.1 Innolux 8.0 800×600
AT080TN43 Innolux 8.0 800×600
AT080TN52 Innolux 8.0 800×600
AT080TN52 V.1 Innolux 8.0 800×600
AT080TN64 Innolux 8.0 800×480
