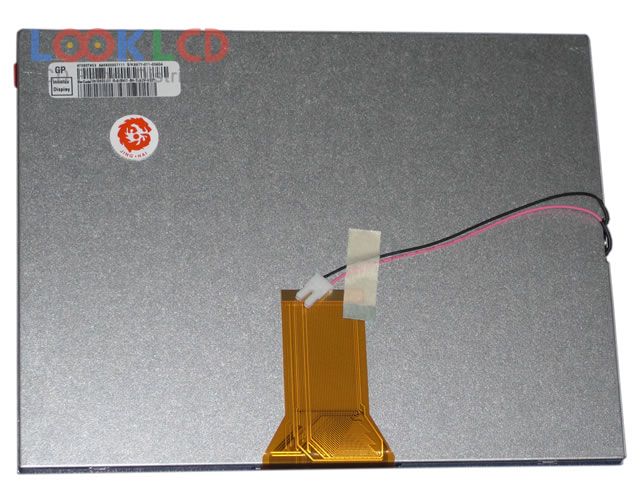

| Part Number | AT080TN52 |
| Mark | Innolux |
| Gréisst | 8.0 |
| Applikatioun | DPF |
| Opléisung | 800×600 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 500:1 |
| Faarwen | 262K/16.2M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | INNOLUX |
| Panel Modell | AT080TN52 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 800(RGB)×600 , SVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 162×121.5 mm |
| skizzéieren | 183×141 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K/16.2M (6-bit / 6-bit + Dithering) |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 3S9PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6/8-bit), 50 pins |
| Input Volt | 3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| Applikatioun | DPF |
