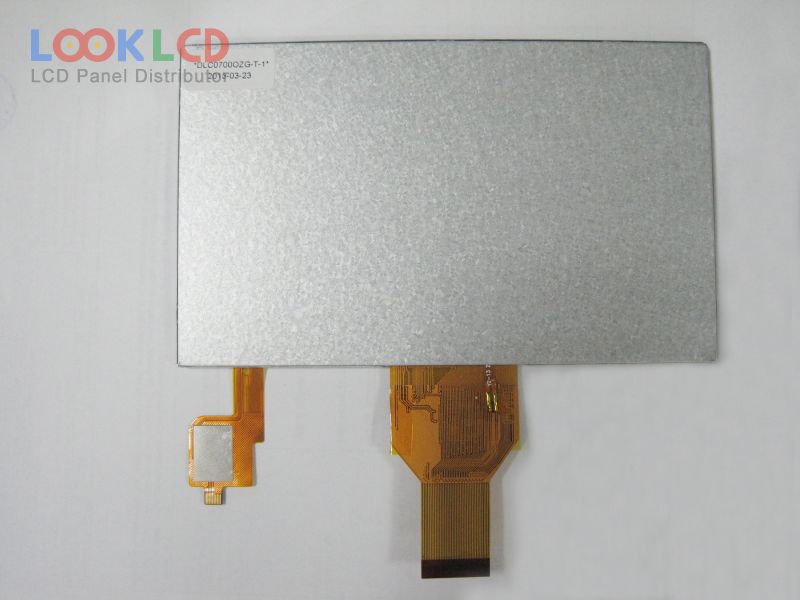

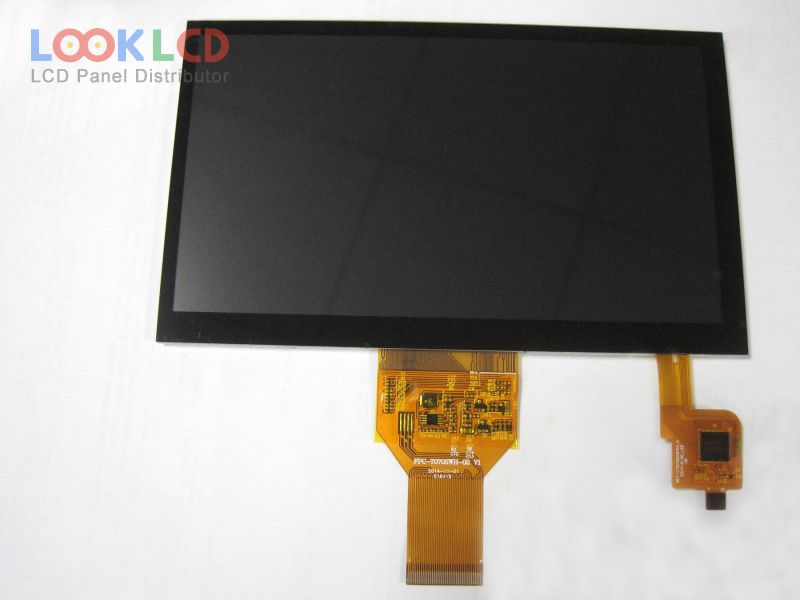

| Part Number | DLC0700OZG-T-1 |
| Mark | Other |
| Gréisst | 7.0 |
| Applikatioun | DPF |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 430 |
| CR | 500:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | DLC |
| Panel Modell | DLC0700OZG-T-1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 154.08×85.92 mm |
| skizzéieren | 165×100×5.18 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 430 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 10/15 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S9PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | DPF |
