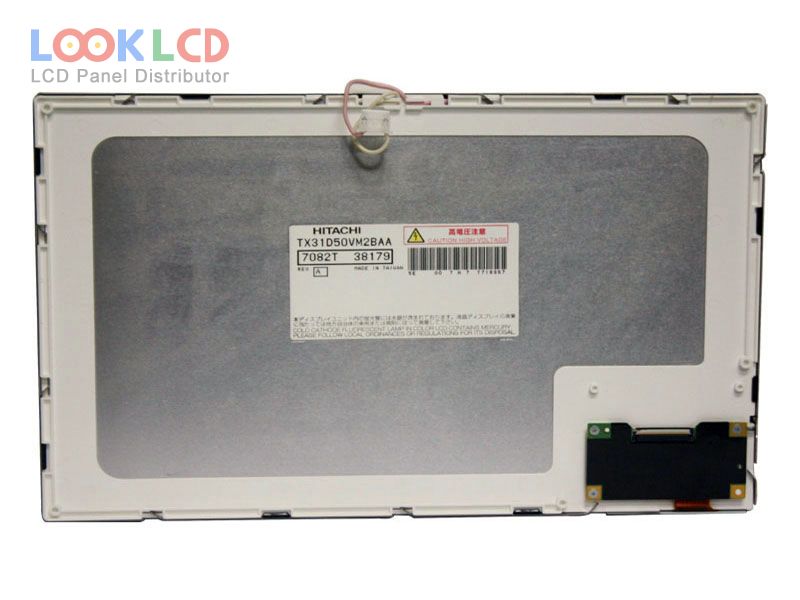

| Part Number | TX31D50VM2BAA |
| Mark | KOE |
| Gréisst | 12.0 |
| Applikatioun | DPF |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 350:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | HITACHI |
| Panel Modell | TX31D50VM2BAA |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 261.6×156.96 mm |
| skizzéieren | 283×173.8 mm |
| Uewerfläch | |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 350:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193170% |
| Äntwert Zäit | |
| Vue Wénkel | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFL |
| Signal Interface | CMOS (1 ch, 6-bit) |
| Input Volt | 3.3V (Typ.) |
| rohs: | |
| Applikatioun | DPF |
