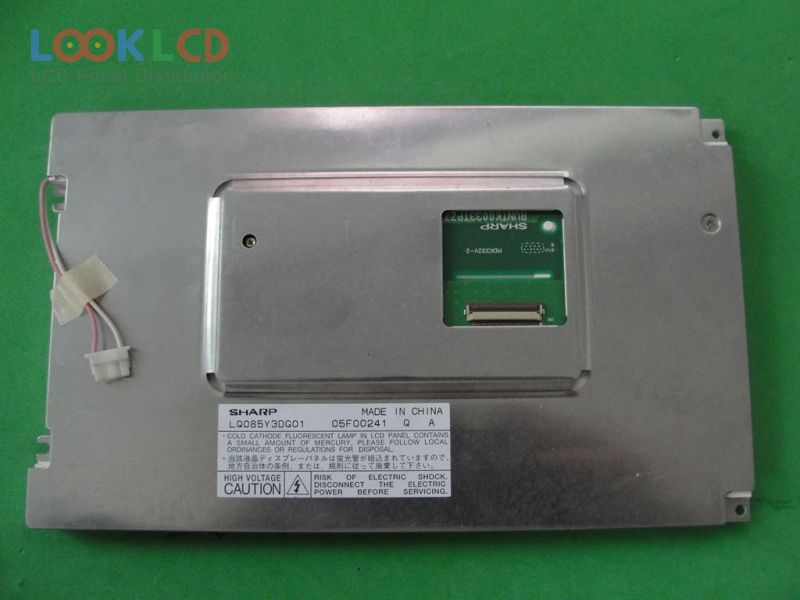

| Part Number | LQ085Y3DG01 |
| Mark | SHARP |
| Gréisst | 8.5 |
| Applikatioun | DPF |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 250:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | SHARP |
| Panel Modell | LQ085Y3DG01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.5 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 184.8×110.88 mm |
| skizzéieren | 222.7×134×12.5 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 200 cd/m² (Min.) |
| Kontrast Verhältnis | 250:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 30/50 (Typ.)(Tr/Td) |
| Vue Wénkel | 55/55/60/40 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.)(VCC) |
| Applikatioun | DPF |
