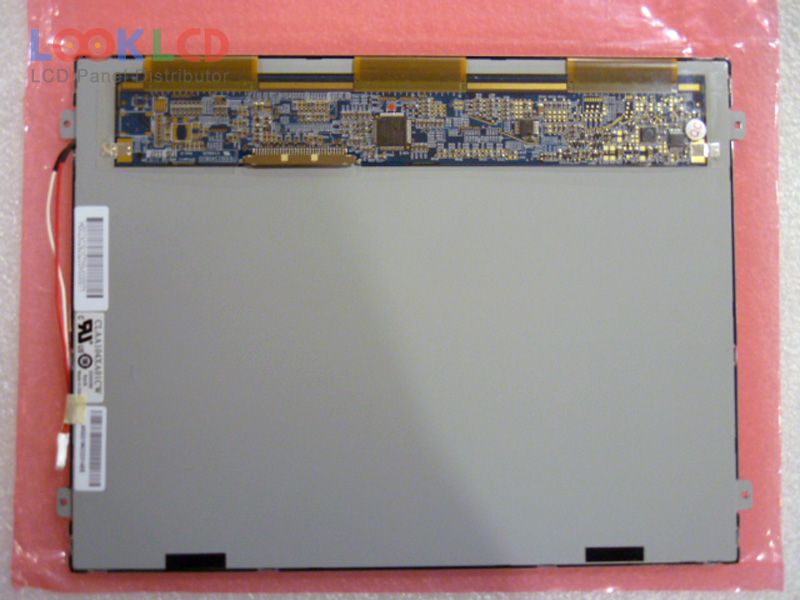

| Part Number | CLAA104XA01CW |
| Mark | CPT |
| Gréisst | 10.4 |
| Applikatioun | DPF |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CPT |
| Panel Modell | CLAA104XA01CW |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 211.2×158.4 mm |
| skizzéieren | 236×174.3 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 25 (Tr+Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 30 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | DPF |
| CLAA101FP01 XG | CPT | 10.1 | 1920×1200 |
| CLAA101NB03A | CPT | 10.1 | 1024×600 |
| CLAA101NC01CW | CPT | 10.1 | 1024×600 |
| CLAA101ND02CW | CPT | 10.1 | 1024×600 |
| CLAA101ND06CW | CPT | 10.1 | 1024×600 |
| CLAA101WA01 | CPT | 10.1 | 1366×768 |
| CLAA102NA01CW | CPT | 10.2 | 1024×600 |
| CLAA102NA0ACW | CPT | 10.2 | 1024×600 |
| CLAA102NC01CW | CPT | 10.2 | 1024×600 |
| CLAA104XA01CW | CPT | 10.4 | 1024×768 |
| A080SN02 V0 | AUO | 8.0 | 800×600 |
| A080SN03 V2 | AUO | 8.0 | 800×600 |
| A101VW01 V0 | AUO | 10.1 | 800×480 |
| A101VW01 V3 | AUO | 10.1 | 800×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| AT080TN52 V.1 | Innolux | 8.0 | 800×600 |
| DLC0700EZG-1 | Other | 7.0 | 800×480 |
| HSD100IFW3-A00 | HannStar | 10.1 | 1024×600 |
| HSD101PFW2-C00 | HannStar | 10.1 | 1024×600 |
| P64AN2AP08 | E Ink | 6.4 | 320×234 |
