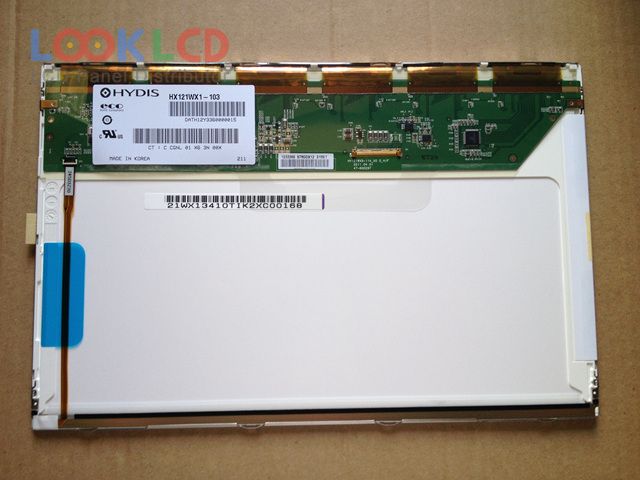

| Part Number | HX121WX1-103 |
| Mark | HYDIS |
| Gréisst | 12.1 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | HYDIS |
| Panel Modell | HX121WX1-103 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | AFFS+, Normally Black, Transmissive |
| aktiv Beräich | 261.12×163.2 mm |
| skizzéieren | 276.8×180×6.8 mm |
| Uewerfläch | Antiglare, Hard coating (2H), Antireflection |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193142% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 12S4PWLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
