Samsung LTL101AL02-T01 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

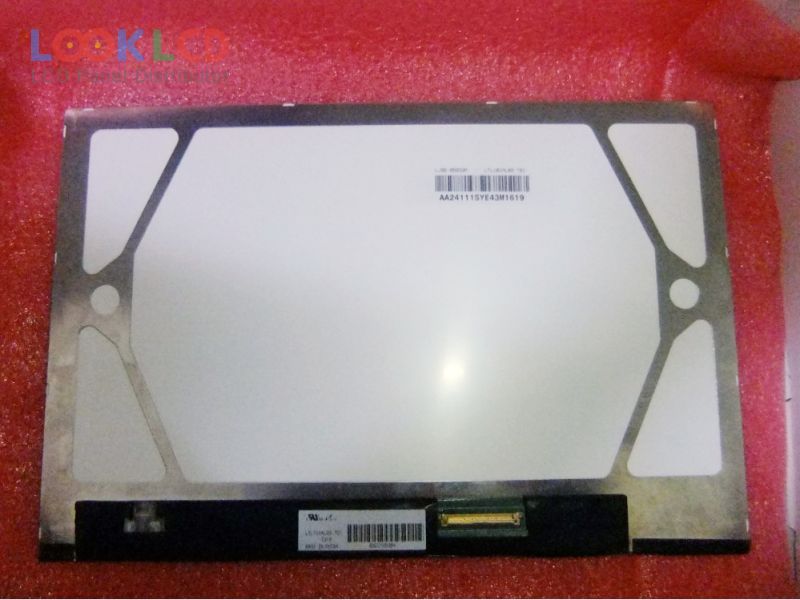

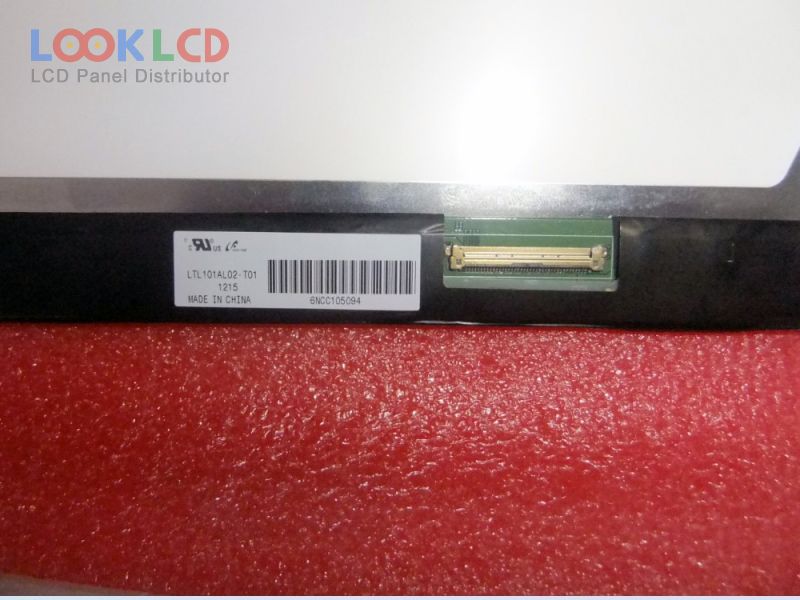

LTL101AL02-T01

LTL101AL02-T01
LTL101AL02-T01
LTL101AL02-T01 thumb LTL101AL02-T01 thumb
Mark
Samsung
Gréisst
10.1
Applikatioun
PAD
Opléisung
1280×800
Zesummesetzung
LCM
Hellegkeet
400
CR
800:1
Faarwen
262K
Backlight
WLED
Interface
LVDS
In Stock
30
Spezifikatioune

Part Number LTL101AL02-T01
MarkSamsung
Gréisst10.1
ApplikatiounPAD
Opléisung1280×800
ZesummesetzungLCM
Hellegkeet400
CR800:1
Faarwen262K
GéigeliichtWLED
InterfaceLVDS
Panel MarkSAMSUNG
Panel ModellLTL101AL02-T01
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst10.1 inch
Resolutioun1280(RGB)×800 , WXGA
Display ModusPLS, Normally Black, Transmissive
aktiv Beräich216.96×135.6 mm
skizzéieren228.06×148.05×4.79 mm
UewerflächHard coating (2H)
Hellegkeet400 cd/m² (Typ.)
Kontrast Verhältnis800:1 (Typ.)
weisen Faarwen262K (6-bit), CIE193150%
Äntwert Zäit30 (Typ.)(Tr+Td)
Vue Wénkel89/89/89/89 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ9S4PWLEDEmbedded (LED Driver)
Signal InterfaceLVDS (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounPAD
Famill Modell
LTL101AL01-W01 Samsung 10.1 1280×800
LTL101AL02-T01 Samsung 10.1 1280×800
LTL101AL03-W01 Samsung 10.1 1280×800
LTL101AL06-002 Samsung 10.1 1280×800
LTL101AL06-003 Samsung 10.1 1280×800
LTL101AL06-104 Samsung 10.1 1280×800
LTL101AL06-801 Samsung 10.1 1280×800
LTL101AL06-803 Samsung 10.1 1280×800
LTL101AL06-W02 Samsung 10.1 1280×800
LTL101AL06-W14 Samsung 10.1 1280×800
