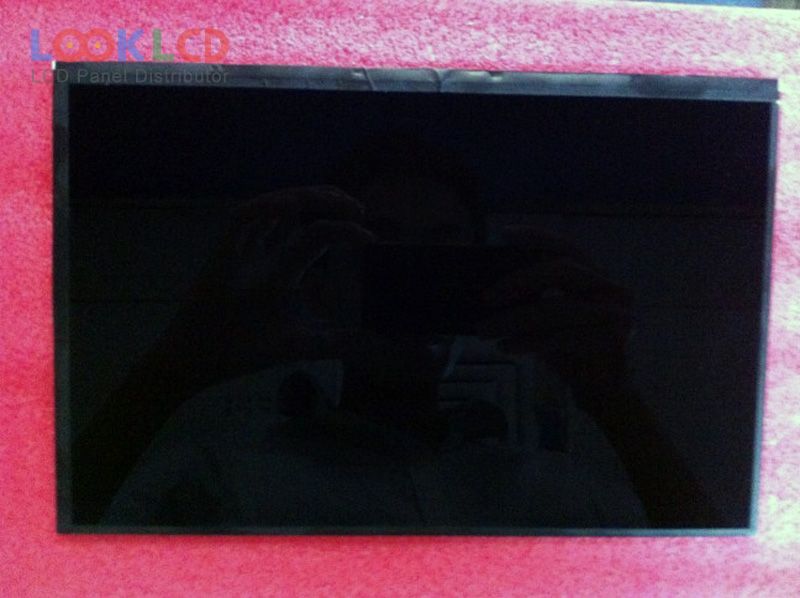

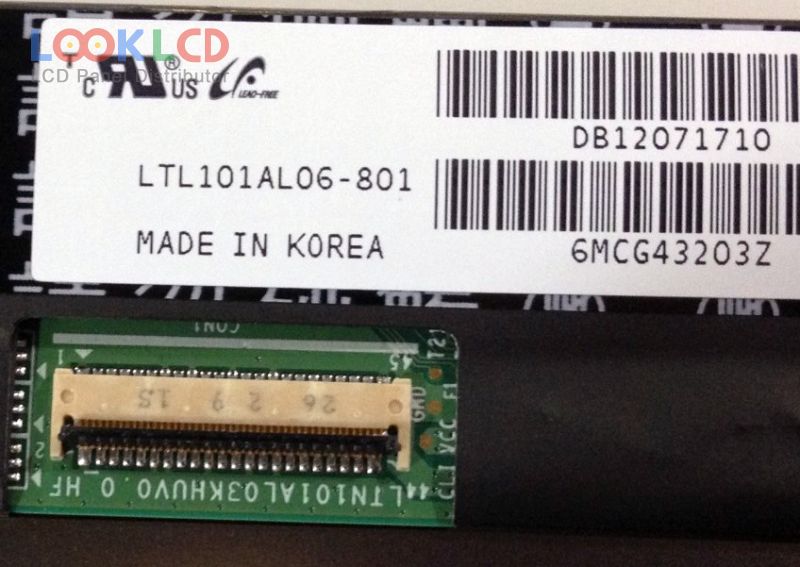

| Part Number | LTL101AL06-801 |
| Mark | Samsung |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 900:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTL101AL06-801 5 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| Display Modus | PLS, Normally Black, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| skizzéieren | 228.21×148.86×4.59 mm |
| Uewerfläch | Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 900:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC), CIE193150% |
| Äntwert Zäit | 30 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 stringsWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 45 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
