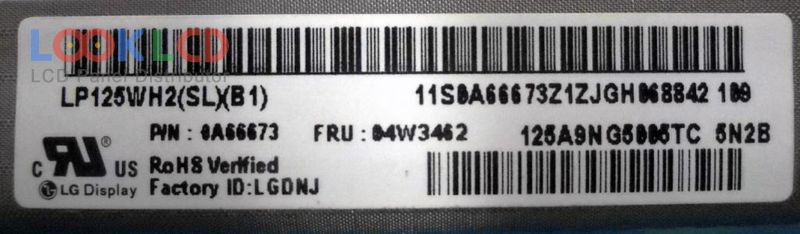

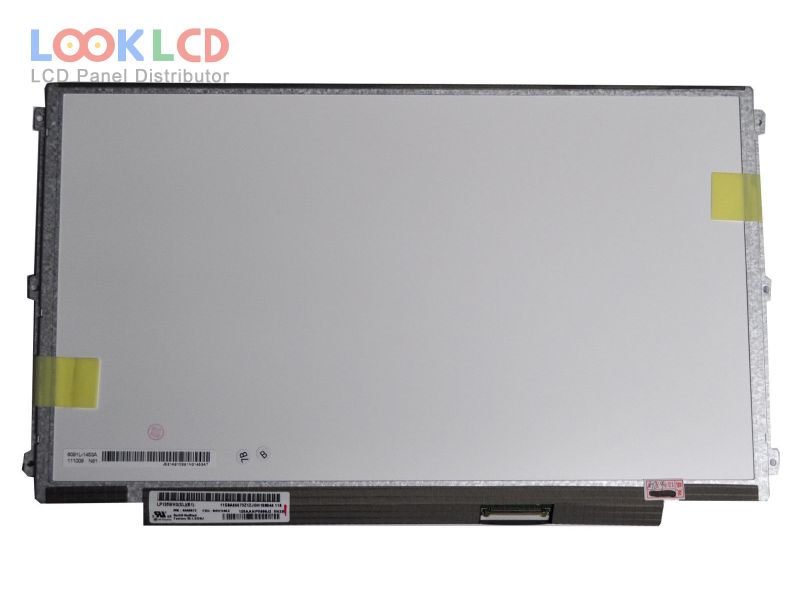

| Part Number | LP125WH2-SLB1 |
| Mark | LG Display |
| Gréisst | 12.5 |
| Applikatioun | PAD |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | LG Display |
| Panel Modell | LP125WH2-SLB1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 12.5 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 275.59×154.94 mm |
| skizzéieren | 300.4×180.9×3.7 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Min.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 35 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
