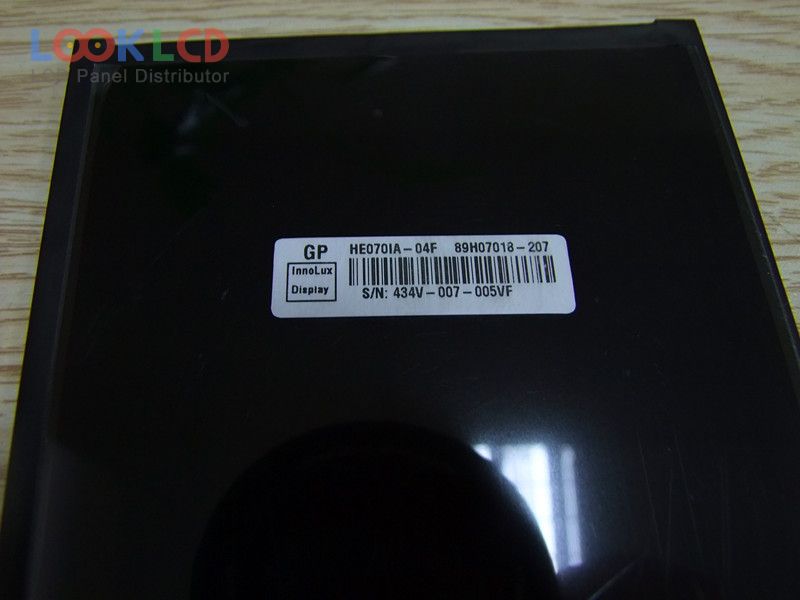

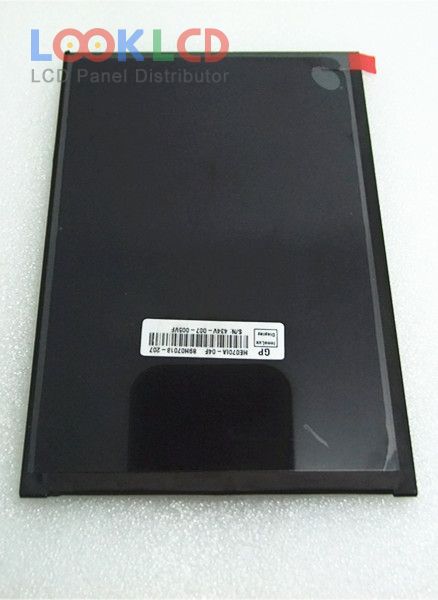

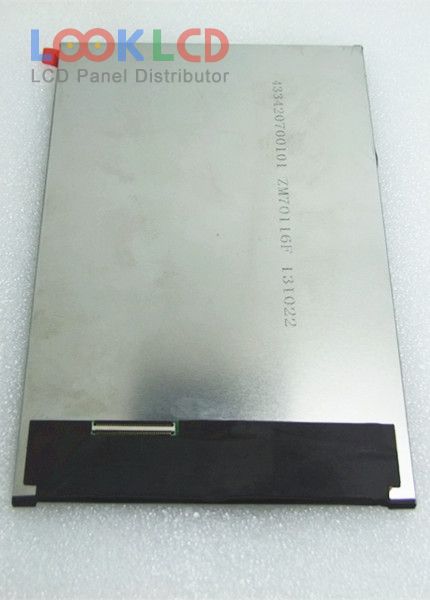

| Part Number | HE070IA-04F |
| Mark | Innolux |
| Gréisst | 7.0 |
| Applikatioun | PAD |
| Opléisung | 800×1280 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | HE070IA-04F |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×1280 , WXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 94.2×150.72 mm |
| skizzéieren | 101.5×159.52×0.82 mm |
| Uewerfläch | Hard coating |
| Glas Déift | 0.25+0.25 mm |
| transmissivitéit | 4.96% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193160% |
| Äntwert Zäit | 50 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Volt | 3.3/8.8/-7.0/22V (Typ.)(VDD/AVDD/VGH/VGL) |
| Applikatioun | PAD |
