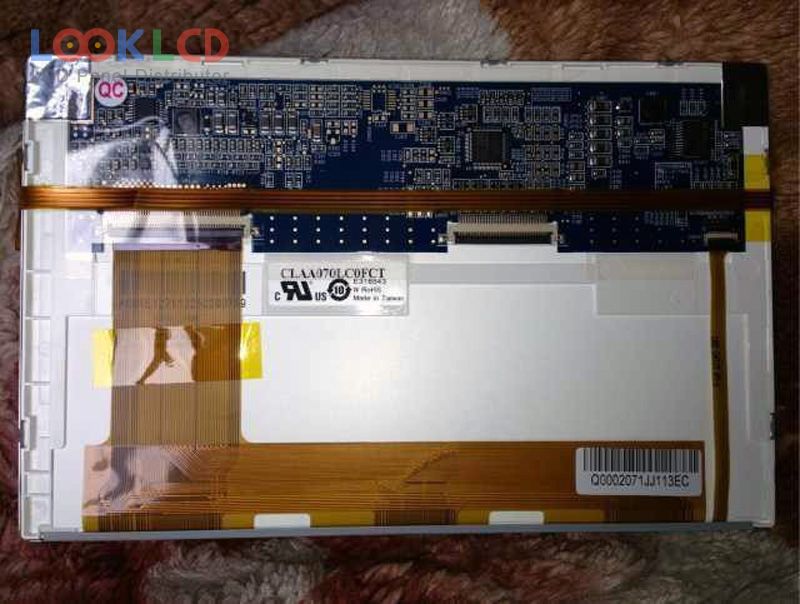

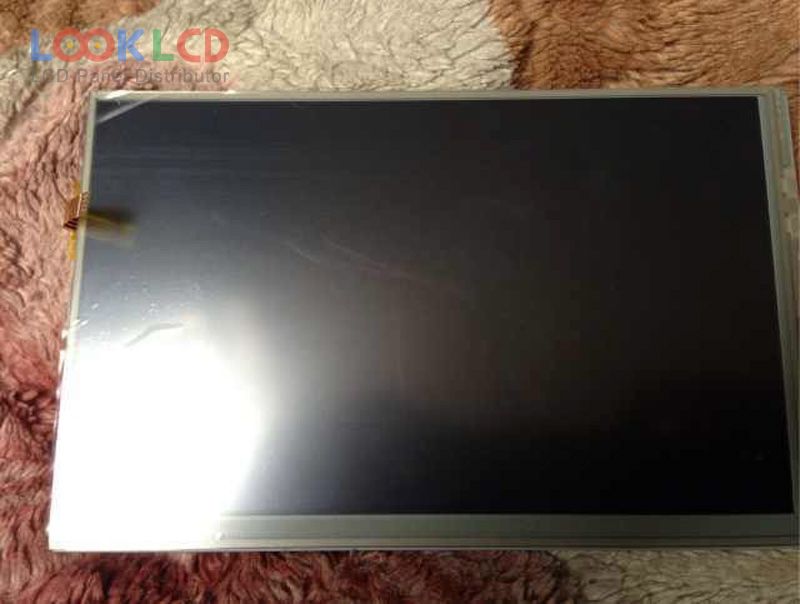

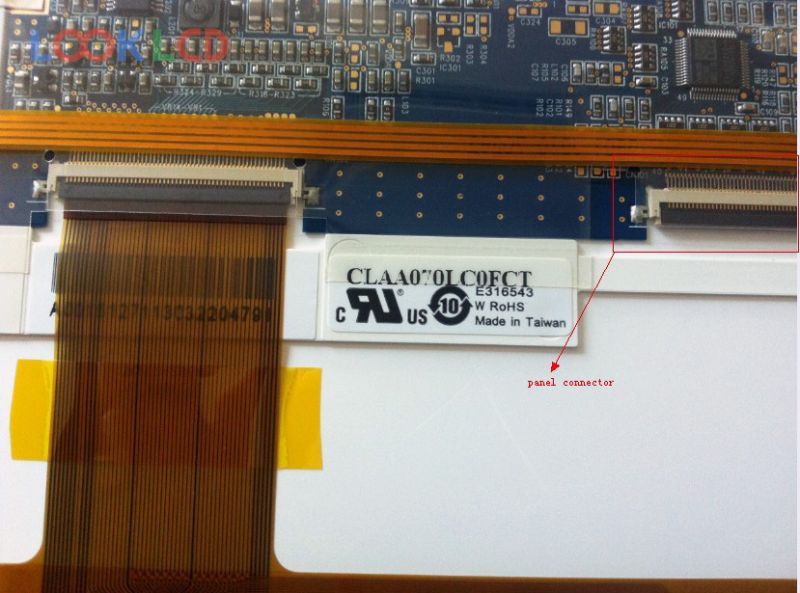

| Part Number | CLAA070LC0FCT |
| Mark | CPT |
| Gréisst | 7.0 |
| Applikatioun | MP4 |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | CPT |
| Panel Modell | CLAA070LC0FCT |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 165×104×6.3 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 20 (Max.)(Tr+Td) |
| Vue Wénkel | 70/70/40/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | TTL (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | MP4 |
| CLAA070LC0CCW | CPT | 7.0 | 800×480 |
| CLAA070LC0ECT | CPT | 7.0 | 800×480 |
| CLAA070LFA1 CW | CPT | 7.0 | 800×480 |
| CLAA070MA0ACW | CPT | 7.0 | 800×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| CLAA070VA01 | CPT | 7.0 | 800×480 |
| CLAA070WA01 | CPT | 7.0 | 480×234 |
| CLAA070WP03XG | CPT | 7.0 | 800×1280 |
| A070VW04 V0 | AUO | 7.0 | 800×480 |
| AT070TN92 | Innolux | 7.0 | 800×480 |
| AT070TN92 V.1 TP | Innolux | 7.0 | 800×480 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| HSD089IFW1-A00 | HannStar | 8.9 | 1024×600 |
| LMS430HF11-003 | Samsung | 4.3 | 480×272 |
| LMS700KF01-001 | Samsung | 7.0 | 800×480 |
| LMS700KF21 | Samsung | 7.0 | 800×480 |
| LMS700KF23 | Samsung | 7.0 | 800×480 |
| TM070DDH01 | Tianma | 7.0 | 1024×600 |
