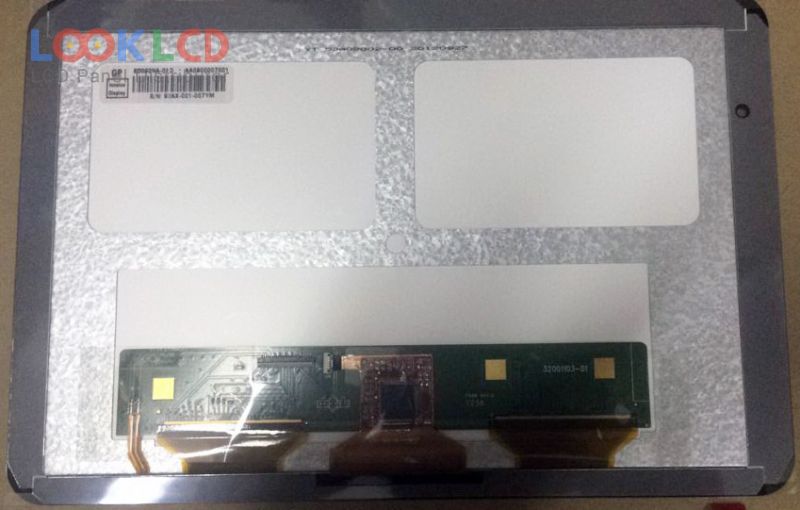

| Part Number | ED090NA-01D |
| Mark | Innolux |
| Gréisst | 9.0 |
| Applikatioun | PAD |
| Opléisung | 1280×800 |
| Zesummesetzung | Assembly |
| Hellegkeet | 200 |
| CR | 700:1 |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | CHIMEI INNOLUX |
| Panel Modell | ED090NA-01D |
| Panel Typ | a-Si TFT-LCD , Assembly |
| Panel Gréisst | 9.0 inch |
| Resolutioun | 1280(RGB)×800 , WXGA |
| aktiv Beräich | 193.92×121.2 mm |
| skizzéieren | 235.12×156.4×7.84 mm |
| Uewerfläch | Hard coating (7H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Hi-FRC), CIE193170% |
| Vue Wénkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (1 ch, 6/8-bit), 51 pins |
| Input Volt | 3.3/11.0/20.0/-6.8V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Applikatioun | PAD |
