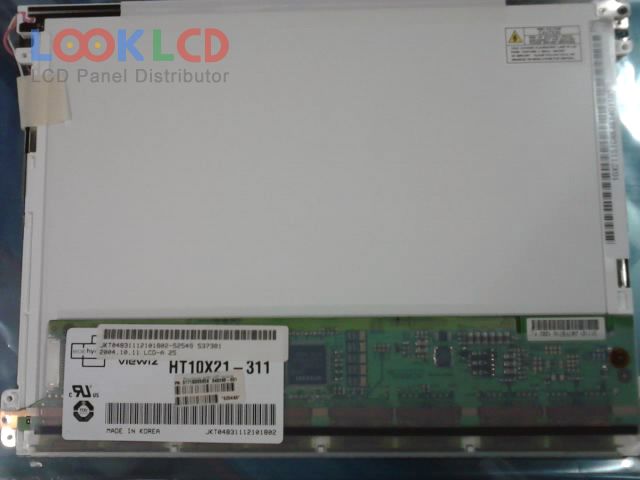

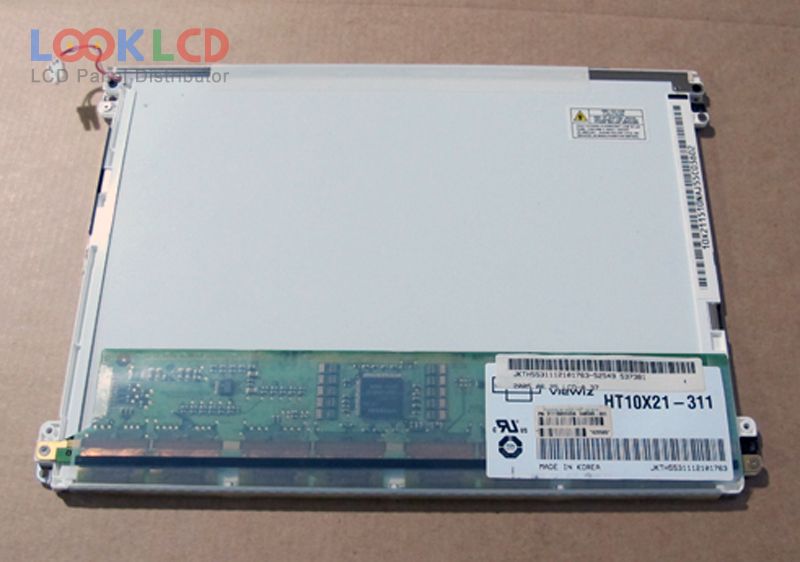

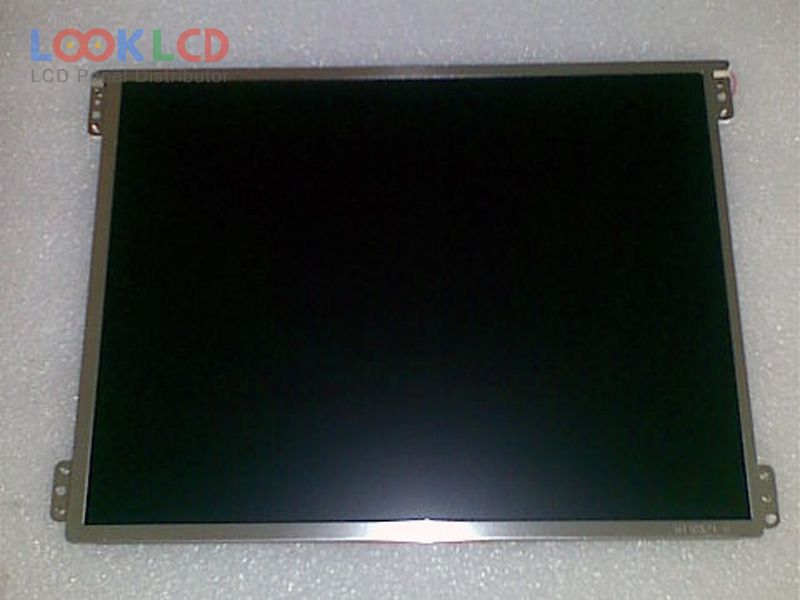

| Part Number | HT10X21-311 |
| Mark | HYDIS |
| Gréisst | 10.4 |
| Applikatioun | PAD |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 170 |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | BOE HYDIS |
| Panel Modell | HT10X21-311 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | FFS, Normally Black, Transmissive |
| aktiv Beräich | 210.4×157.8 mm |
| skizzéieren | 238.6×173.2 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 170 cd/m² (Typ.) |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 40 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 14 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | PAD |
