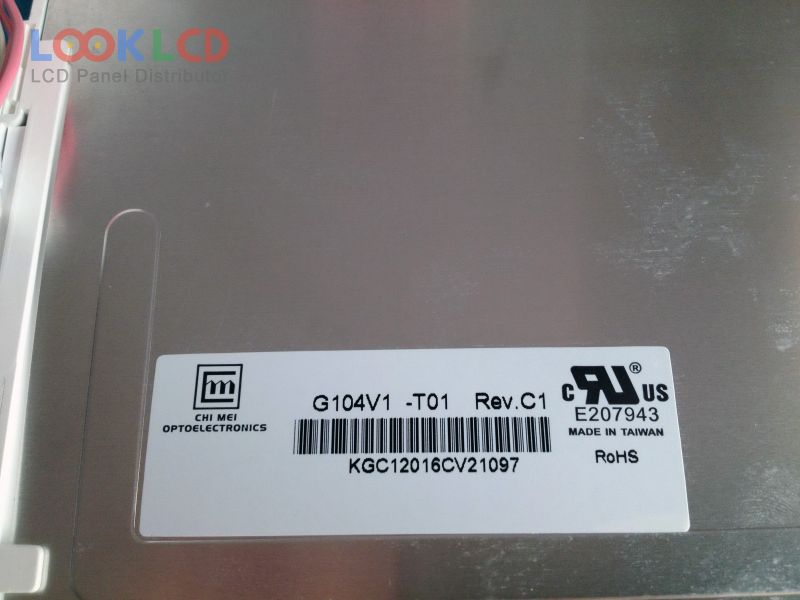

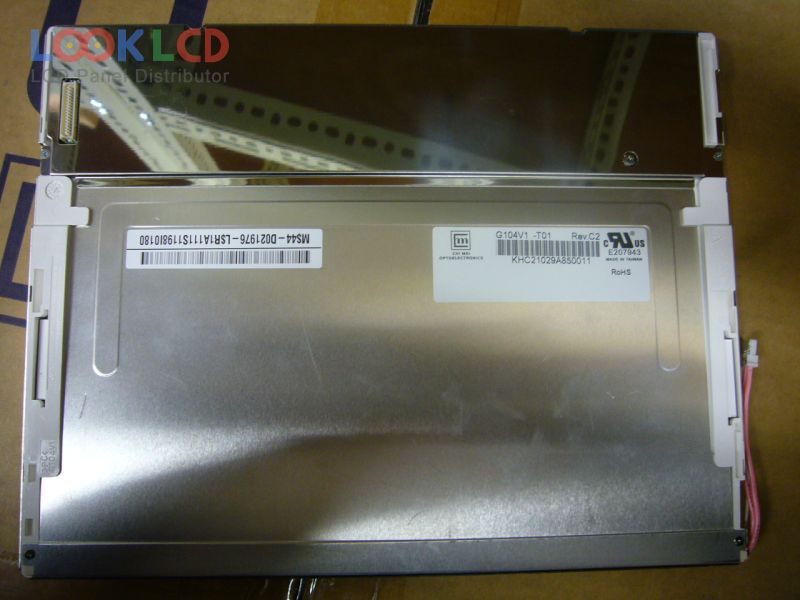

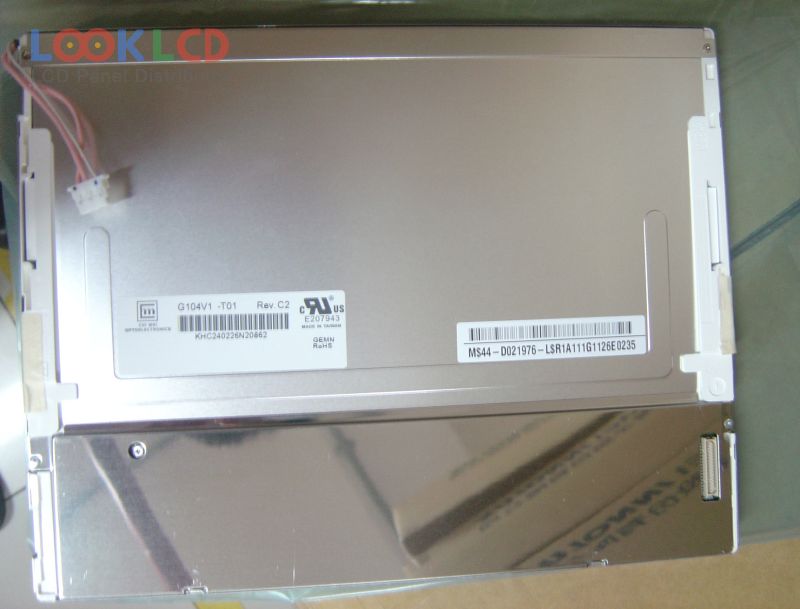

| Part Number | G104V1-T01 |
| Mark | Innolux |
| Gréisst | 10.4 |
| Applikatioun | CNS |
| Opléisung | 640×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 1500:1 |
| Faarwen | 262K |
| Géigeliicht | CCFL |
| Interface | TTL |
| Panel Mark | CMO |
| Panel Modell | G104V1-T01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.4 inch |
| Resolutioun | 640(RGB)×480 , VGA |
| Display Modus | Super MVA, Normally Black, Transmissive |
| aktiv Beräich | 211.2×158.4 mm |
| skizzéieren | 225.5×176.3×10 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 1500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 14/9 (Typ.)(Tr/Td) |
| Vue Wénkel | 88/88/88/88 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | CMOS/TTL (1 ch, 6-bit), 31 pins |
| Input Volt | 3.3/5.0V (Typ.)(VCC) |
| rohs: | |
| Applikatioun | CNS |
