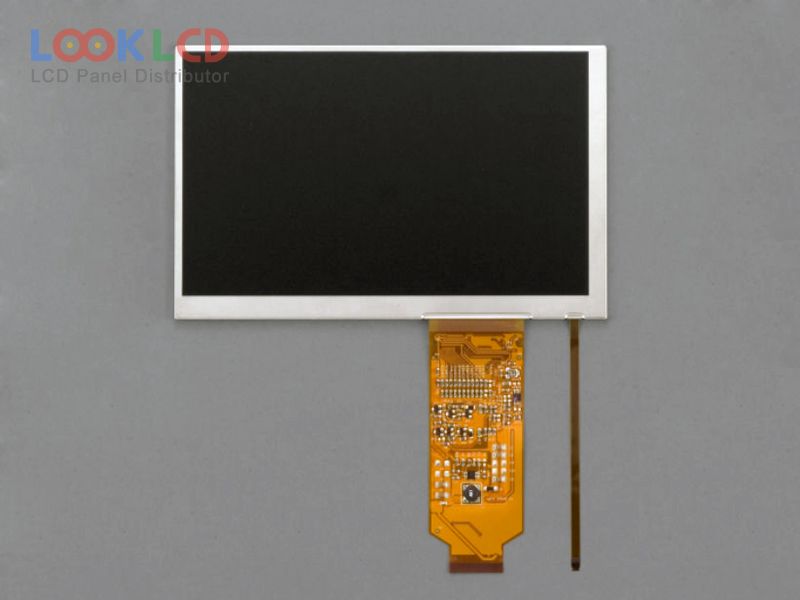

| Part Number | 70WVW1A |
| Mark | SII |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 400:1 |
| Faarwen | 16.2M |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SII |
| Panel Modell | 70WVW1A |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 165×105.8×3.65 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + Dithering), CIE193145% |
| Äntwert Zäit | 5/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 8S3PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
