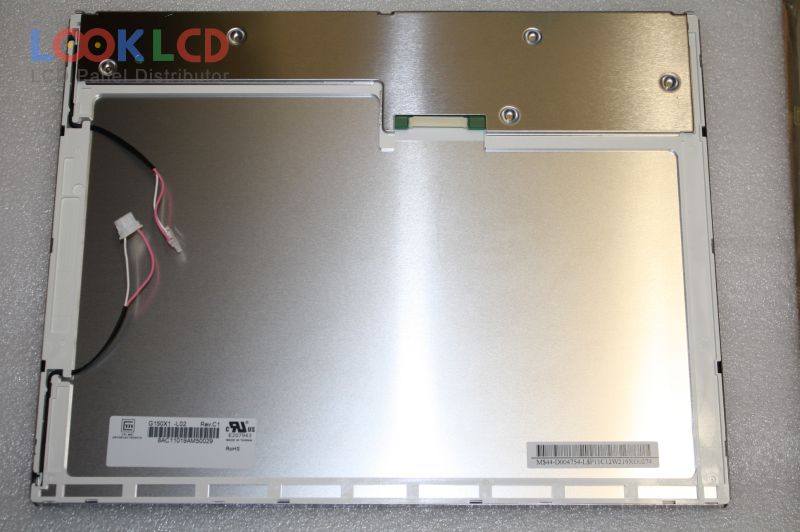

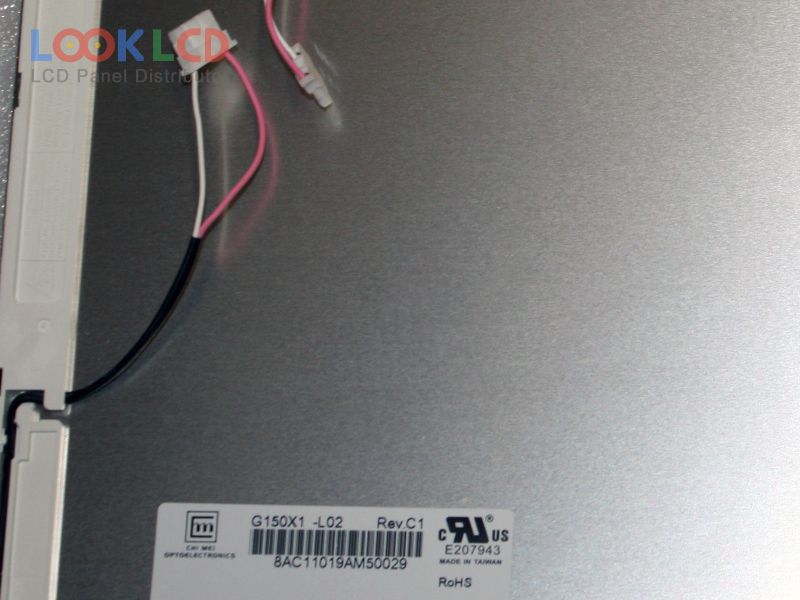

| Part Number | G150X1-L02 |
| Mark | Innolux |
| Gréisst | 15.0 |
| Applikatioun | CNS |
| Opléisung | 1024×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 450 |
| CR | 700:1 |
| Faarwen | 16.2M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | CMO |
| Panel Modell | G150X1-L02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 15.0 inch |
| Resolutioun | 1024(RGB)×768 , XGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 304.128×228.096 mm |
| skizzéieren | 326.5×253.5×14.35 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 450 cd/m² (Typ.) |
| Kontrast Verhältnis | 700:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC) |
| Äntwert Zäit | 8/17 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
