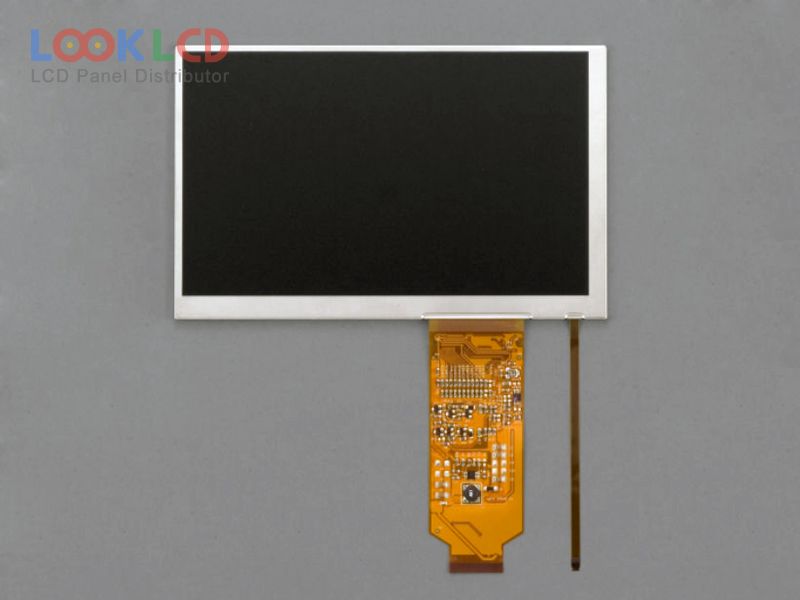

| Part Number | 70WVW3A |
| Mark | SII |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 350 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | SII |
| Panel Modell | 70WVW3A |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 165×105.8×3.65 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 350 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193145% |
| Äntwert Zäit | 5/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 8S3PWLED |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
| 70WVW1A | SII | 7.0 | 800×480 |
| 70WVW1T | SII | 7.0 | 800×480 |
| 70WVW2A | SII | 7.0 | 800×480 |
| 70WVW2T | SII | 7.0 | 800×480 |
| 70WVW3A | SII | 7.0 | 800×480 |
| 70WVW3T | SII | 7.0 | 800×480 |
| 70WVW4A | SII | 7.0 | 800×480 |
| 70WVW5A | SII | 7.0 | 800×480 |
| LQ070Y5DG20 | SHARP | 7.0 | 800×480 |
| LW700AT9003 | Innolux | 7.0 | 800×480 |
| A070VTN03.0 | AUO | 7.0 | 800×480 |
| AM-1024600KTMQW-04H | AMPIRE | 7.0 | 1024×600 |
| C043FW01 V0 | AUO | 4.3 | 480×234 |
| CLAA061LA0BCW | CPT | 6.1 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| DLC1040ABG-T-2 | Other | 10.4 | 800×600 |
| G070Y1-T01 | Innolux | 7.0 | 800×480 |
| LA070WV6-SL02 | LG Display | 7.0 | 800×480 |
| LAJ084T001A | TPO | 8.4 | 800×600 |
| LB080WV6-TA03 | LG Display | 8.0 | 800×480 |
