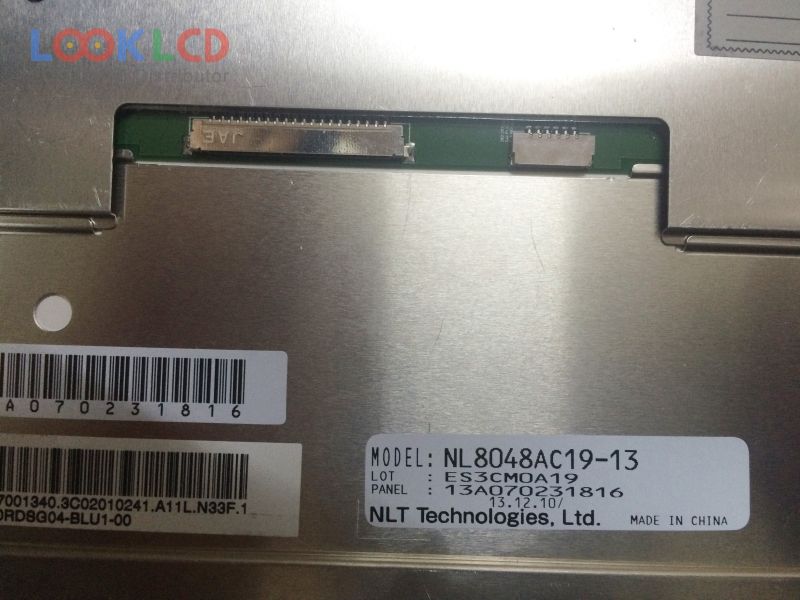

| Part Number | NL8048AC19-13 |
| Mark | NLT |
| Gréisst | 7.0 |
| Applikatioun | IA |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | NLT |
| Panel Modell | NL8048AC19-13 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 170×111×9 mm |
| Uewerfläch | Clear, Hard coating (3H) |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193160% |
| Äntwert Zäit | 8 (Typ.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | IA |
| A070VW08 V2 | AUO | 7.0 | 800×480 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| N070LGE-L21 | Innolux | 7.0 | 1024×600 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| NL8048BC19-02 | NLT | 7.0 | 800×480 |
| NL8048BC19-02C | NLT | 7.0 | 800×480 |
| NL8048BC24-09D | NLT | 9.0 | 800×480 |
| NL8048BC24-12 | NLT | 9.0 | 800×480 |
| NL8048BC24-14NH | NLT | 9.0 | 800×480 |
| AA104VB04 | Mitsubishi | 10.4 | 640×480 |
| EL320.240-FA3 | Lumineq | 4.9 | 320×240 |
| EL640.480-AG1 | Lumineq | 8.1 | 640×480 |
| EW50855BMW | EDT | 4.7 | 320×240 |
| G057VTN01.0 | AUO | 5.7 | 640×480 |
| LLB121ST01 | Samsung | 12.1 | 800×600 |
| LM12S472 | SHARP | 12.1 | 800×600 |
| LQ104V1DG21 | SHARP | 10.4 | 640×480 |
| NL6448BC26-01 | NLT | 8.4 | 640×480 |
| PM070WL3 | E Ink | 7.0 | 800×480 |
