| Part Number | VVX10T022N00 |
| Mark | Panasonic |
| Gréisst | 10.1 |
| Applikatioun | PAD |
| Opléisung | 2560×1600 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | eDP |
| Panel Mark | Panasonic |
| Panel Modell | VVX10T022N00 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 10.1 inch |
| Resolutioun | 2560(RGB)×1600 , WQXGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 216.96×135.6 mm |
| skizzéieren | 227.65×147.85×4.37 mm |
| Uewerfläch | Hard coating |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193172% |
| Äntwert Zäit | 30 (Max.)(Tr+Td) |
| Vue Wénkel | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S6PWLEDWithout Driver |

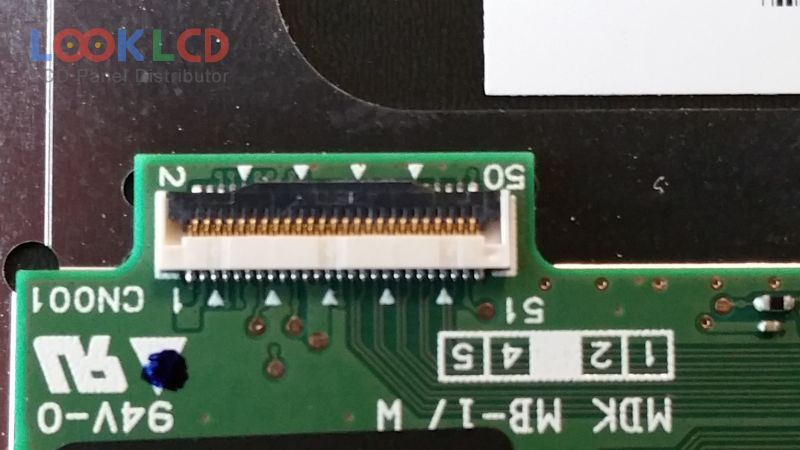

| Signal Interface | eDP (4 Lanes), 51 pins |
| Input Volt | 3.7V (Typ.) |
| Applikatioun | PAD |
