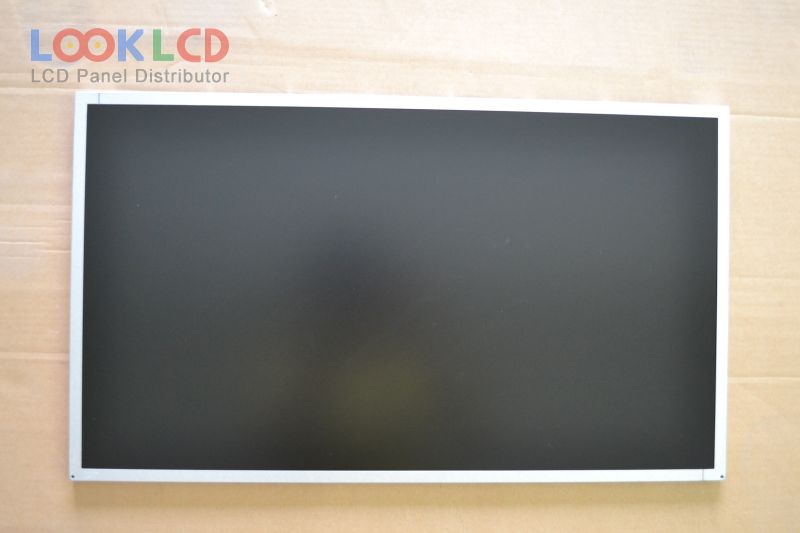

M240HTN01.2

M240HTN01.2
M240HTN01.2
M240HTN01.2
M240HTN01.2 thumb M240HTN01.2 thumb M240HTN01.2 thumb
Mark
AUO
Gréisst
24.0
Applikatioun
DMPC
Opléisung
1920×1080
Zesummesetzung
LCM
Hellegkeet
250
CR
1000:1
Faarwen
16.7M
Backlight
WLED
Interface
LVDS
In Stock
6363
Spezifikatioune

Part Number M240HTN01.2
MarkAUO
Gréisst24.0
ApplikatiounDMPC
Opléisung1920×1080
ZesummesetzungLCM
Hellegkeet250
CR1000:1
Faarwen16.7M
GéigeliichtWLED
InterfaceLVDS
Panel MarkAUO
Panel ModellM240HTN01.2
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst24.0 inch
Resolutioun1920(RGB)×1080 , FHD
Display ModusTN, Normally White, Transmissive
aktiv Beräich531.36×298.89 mm
skizzéieren556×323.2×12 mm
UewerflächAntiglare, Hard coating (3H)
Hellegkeet250 cd/m² (Typ.)
Kontrast Verhältnis1000:1 (Typ.)
weisen Faarwen16.7M (6-bit + Hi-FRC), CIE193172%
Äntwert Zäit3.5/1.5 (Typ.)(Tr/Td)
Vue Wénkel85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ9S4PWLEDWithout Driver
Signal InterfaceLVDS (2 ch, 8-bit), 30 pins
Input Volt5.0V (Typ.)
ApplikatiounDMPC
