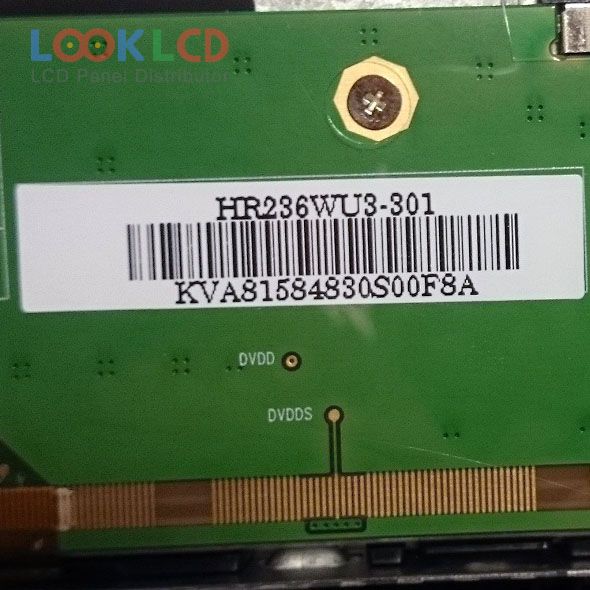

| Part Number | HR236WU3-301 |
| Mark | BOE |
| Gréisst | 23.6 |
| Applikatioun | DMPC |
| Opléisung | 1920×1080 |
| Zesummesetzung | CELL |
| Hellegkeet | 0 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | No B/L |
| Interface | LVDS |
| Panel Mark | BOE |
| Panel Modell | HR236WU3-301 |
| Panel Typ | a-Si TFT-LCD , CELL |
| Panel Gréisst | 23.6 inch |
| Resolutioun | 1920(RGB)×1080 , FHD |
| Display Modus | ADS, Normally Black, Transmissive |
| aktiv Beräich | 521.28×293.22 mm |
| skizzéieren | 535.9×307 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Glas Déift | 0.50+0.50 mm |
| transmissivitéit | 4.35% (Typ.)(with Polarizer) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC) |
| Äntwert Zäit | 14 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
