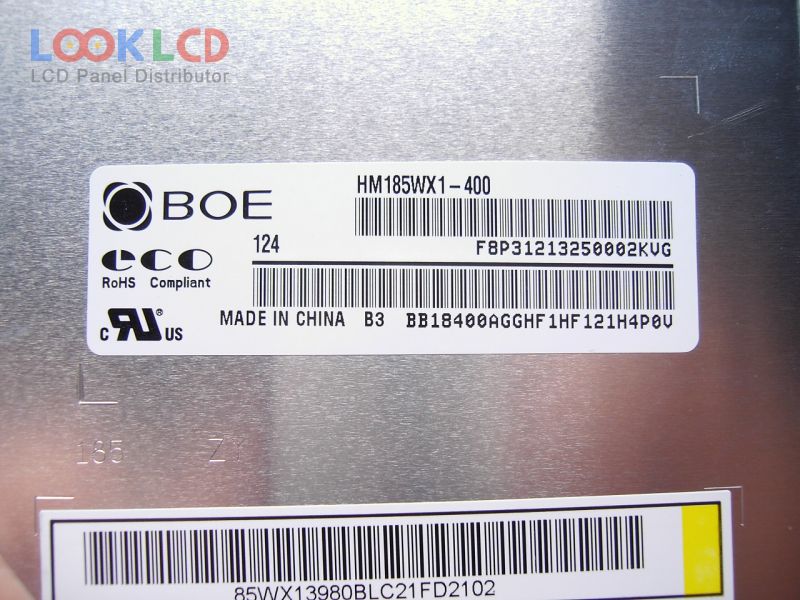

| Part Number | HM185WX1-400 |
| Mark | BOE |
| Gréisst | 18.5 |
| Applikatioun | DMPC |
| Opléisung | 1366×768 |
| Zesummesetzung | LCM |
| Hellegkeet | 200 |
| CR | 600:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | BOE |
| Panel Modell | HM185WX1-400 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 18.5 inch |
| Resolutioun | 1366(RGB)×768 , WXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 409.8×230.4 mm |
| skizzéieren | 430.4×254.6×11.4 mm |
| Uewerfläch | Antiglare (Haze 25%), Hard coating (3H) |
| Hellegkeet | 200 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Äntwert Zäit | 1.5/3.5 (Typ.)(Tr/Td) |
| Vue Wénkel | 45/45/20/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 10S4PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
| HM185WX1-300 | BOE | 18.5 | 1366×768 |
| HM185WX1-400 | BOE | 18.5 | 1366×768 |
| LC185EXN-SCA1 | LG Display | 18.5 | 1366×768 |
| LM185WH1-TLA1 | LG Display | 18.5 | 1366×768 |
| LTM185AT01 | Samsung | 18.5 | 1366×768 |
| M185BGE-L10 | Innolux | 18.5 | 1366×768 |
| M185BGE-L22 | Innolux | 18.5 | 1366×768 |
| M185XTN01.2 | AUO | 18.5 | 1366×768 |
| M185XW01 V5 | AUO | 18.5 | 1366×768 |
| MT185GW01 V.0 | Innolux | 18.5 | 1366×768 |
| FLC44SXC8V | Fujitsu | 17.4 | 1280×1024 |
| LM201U05-SLL1 | LG Display | 20.1 | 1600×1200 |
| LM220WE3-TLA1 | LG Display | 22.0 | 1680×1050 |
| LM300WQ3-STA1 | LG Display | 30.0 | 2560×1600 |
| LQ170E1LG18 | SHARP | 17.0 | 1280×1024 |
| LTM185AT01 | Samsung | 18.5 | 1366×768 |
| LTM220MT09 | Samsung | 22.0 | 1680×1050 |
| M190PP01 V0 | AUO | 19.0 | 1440×900 |
| M215H1-L02 | Innolux | 21.5 | 1920×1080 |
| M215HNE-L30 | Innolux | 21.5 | 1920×1080 |
