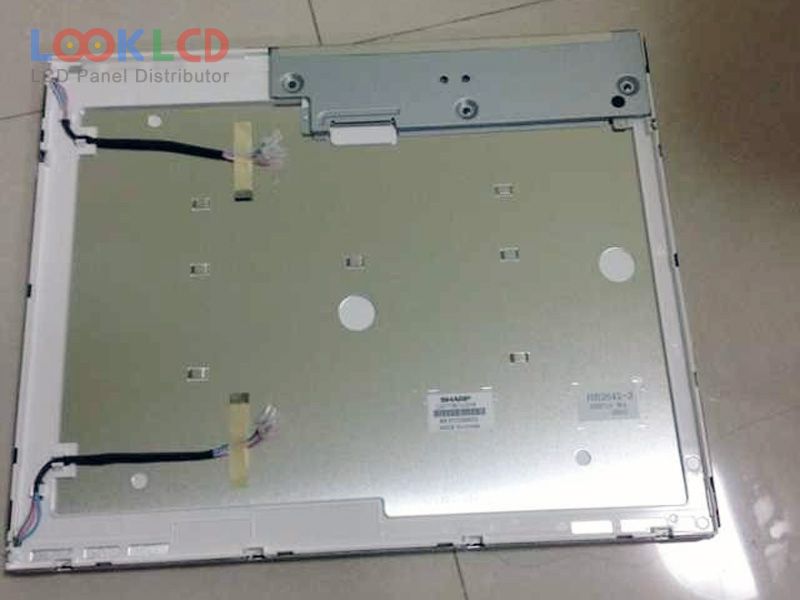

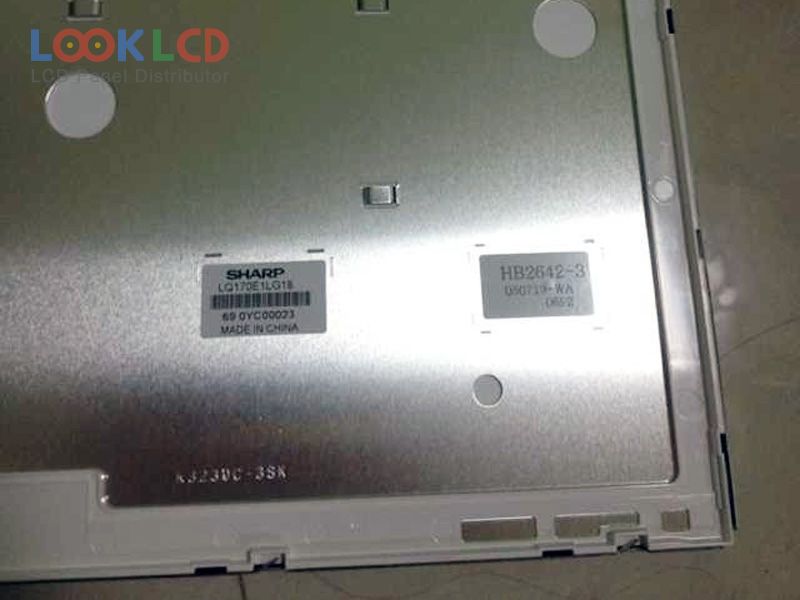

| Part Number | LQ170E1LG18 |
| Mark | SHARP |
| Gréisst | 17.0 |
| Applikatioun | DMPC |
| Opléisung | 1280×1024 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 450:1 |
| Faarwen | 16.2M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SHARP |
| Panel Modell | LQ170E1LG18 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.0 inch |
| Resolutioun | 1280(RGB)×1024 , SXGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 337.92×270.336 mm |
| skizzéieren | 358.5×296.5×17.5 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 450:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC) |
| Äntwert Zäit | 16 (Typ.)(Tr+Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| rohs: | |
| Applikatioun | DMPC |
