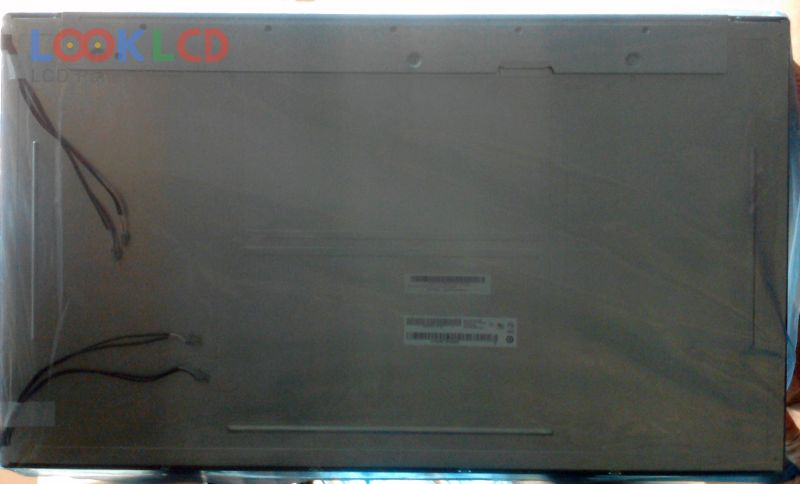

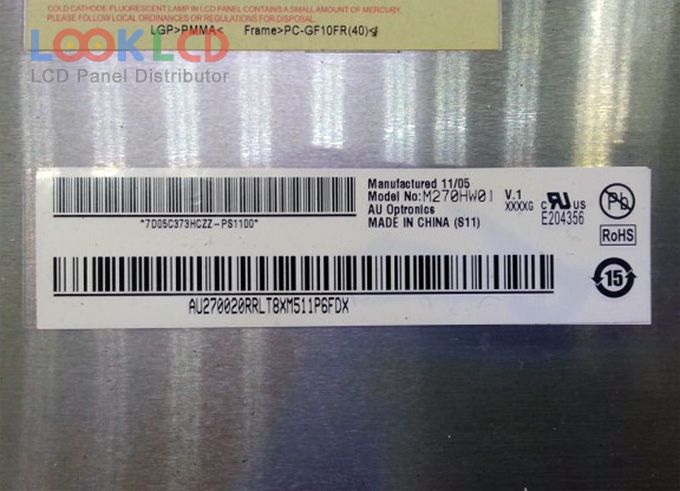

M270HW01 V1

M270HW01 V1
M270HW01 V1
M270HW01 V1 thumb M270HW01 V1 thumb
Mark
AUO
Gréisst
27.0
Applikatioun
DMPC
Opléisung
1920×1080
Zesummesetzung
LCM
Hellegkeet
400
CR
1000:1
Faarwen
16.7M
Backlight
CCFL
Interface
LVDS
In Stock
7207
Spezifikatioune

Part Number M270HW01 V1
MarkAUO
Gréisst27.0
ApplikatiounDMPC
Opléisung1920×1080
ZesummesetzungLCM
Hellegkeet400
CR1000:1
Faarwen16.7M
GéigeliichtCCFL
InterfaceLVDS
Panel MarkAUO
Panel ModellM270HW01 V1
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst27.0 inch
Resolutioun1920(RGB)×1080 , FHD
Display ModusTN, Normally White, Transmissive
aktiv Beräich597.6×336.15 mm
skizzéieren630×368.2 mm
UewerflächAntiglare, Hard coating (3H)
Hellegkeet400 cd/m² (Typ.)
Kontrast Verhältnis1000:1 (Typ.)
weisen Faarwen16.7M (8-bit)
Äntwert Zäit3.8/1.2 (Typ.)(Tr/Td)
Vue Wénkel85/85/80/80 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ4 pcsCCFLWithout Driver
Signal InterfaceLVDS (2 ch, 8-bit), 30 pins
Input Volt5.0V (Typ.)
ApplikatiounDMPC
