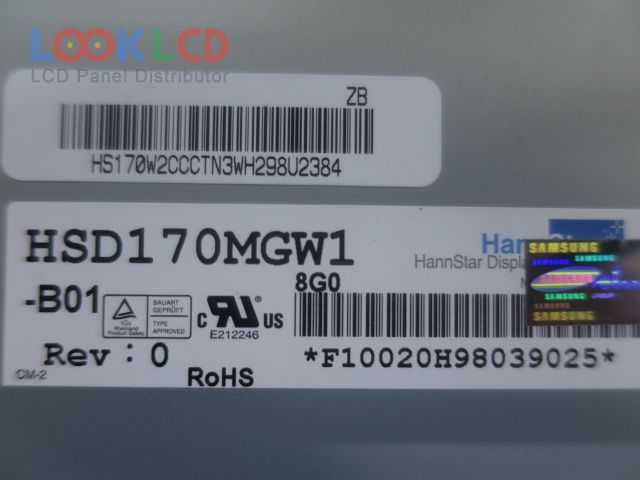

| Part Number | HSD170MGW1-B01 |
| Mark | HannStar |
| Gréisst | 17.0 |
| Applikatioun | DMPC |
| Opléisung | 1440×900 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 600:1 |
| Faarwen | 16.2M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | HannStar |
| Panel Modell | HSD170MGW1-B01 1 Compatible model |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 17.0 inch |
| Resolutioun | 1440(RGB)×900 , WXGA+ |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 367.2×229.5 mm |
| skizzéieren | 389.2×254.5×11.8 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 600:1 (Typ.) |
| weisen Faarwen | 16.2M (6-bit + FRC), CIE193163% |
| Äntwert Zäit | 3/5 (Typ.)(Tr/Td) |
| Vue Wénkel | 80/80/65/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
