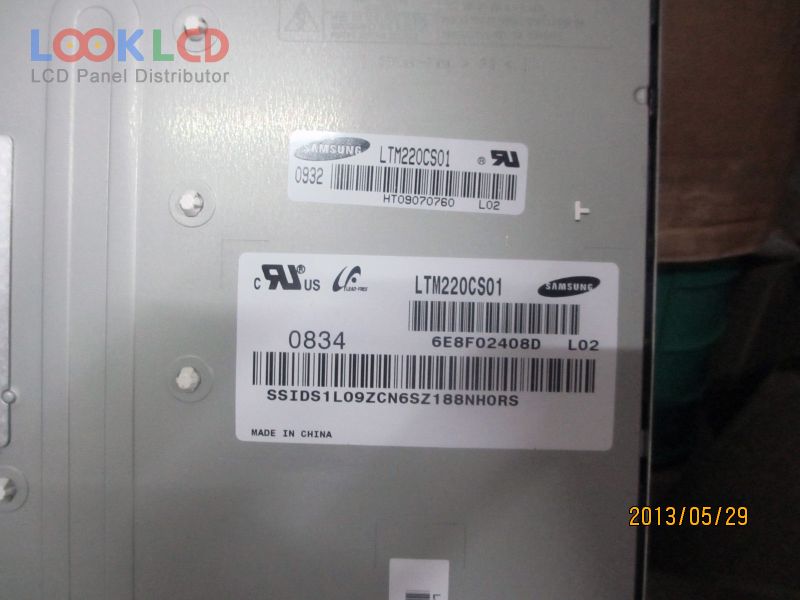

| Part Number | LTM220CS01 |
| Mark | Samsung |
| Gréisst | 22.0 |
| Applikatioun | DMPC |
| Opléisung | 1920×1200 |
| Zesummesetzung | LCM |
| Hellegkeet | 300 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | CCFL |
| Interface | LVDS |
| Panel Mark | SAMSUNG |
| Panel Modell | LTM220CS01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 22.0 inch |
| Resolutioun | 1920(RGB)×1200 , WUXGA |
| Display Modus | S-PVA, Normally Black, Transmissive |
| aktiv Beräich | 473.76×296.1 mm |
| skizzéieren | 497.8×320.1 mm |
| Uewerfläch | Antiglare (Haze 44%), Hard coating (3H) |
| Hellegkeet | 300 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193192% |
| Äntwert Zäit | 16 (Typ.)(Tr+Td); 8 (Typ.)(G to G) |
| Vue Wénkel | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6 pcsCCFL |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Volt | 5.0V (Typ.) |
| Applikatioun | DMPC |
