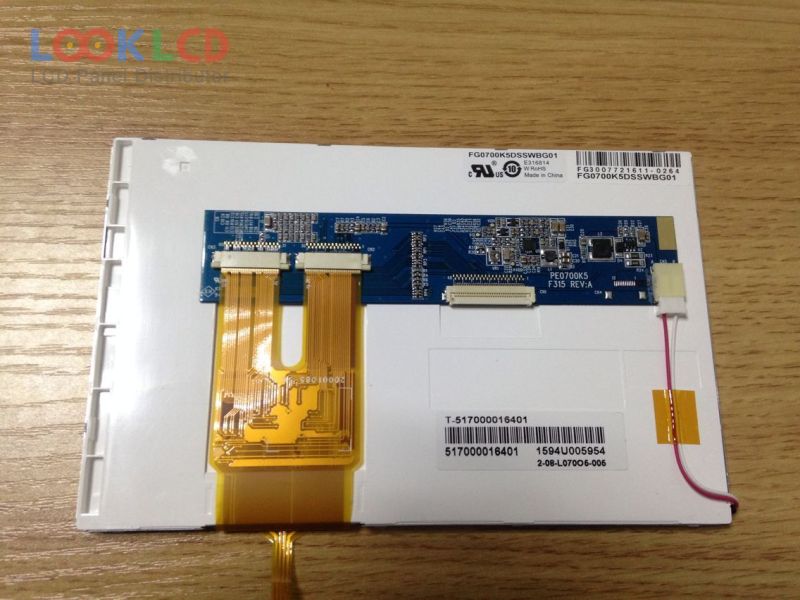

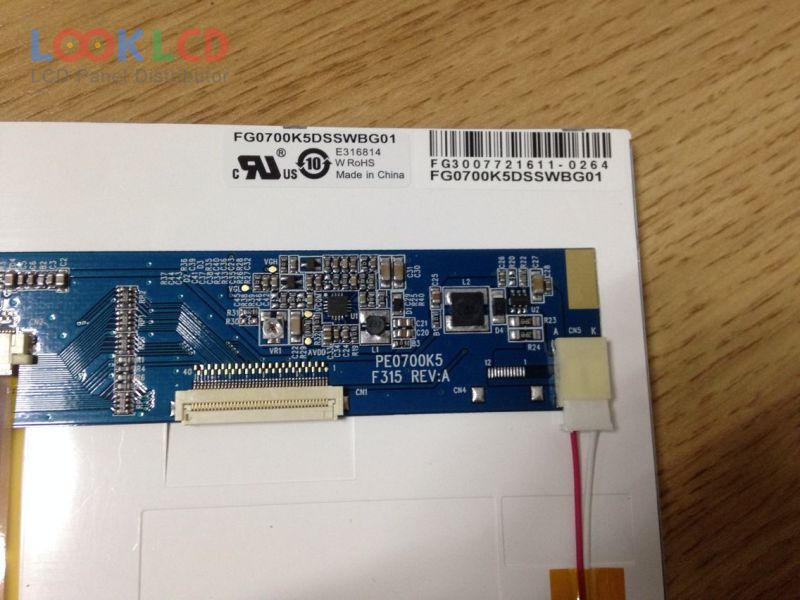

| Part Number | FG0700K5DSSWBG01 |
| Mark | Data Image |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | Data Image |
| Panel Modell | FG0700K5DSSWBG01 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 165×104.44×9.7 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 5/11 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/60/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S8PWLEDEmbedded (LED Driver) |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.)(VCC) |
| Applikatioun | CNS |
| AT070TN84 V.1 | Innolux | 7.0 | 800×480 |
| B070ATN02.0 | AUO | 7.0 | 600×1024 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| CLAA070LH01AW | CPT | 7.0 | 800×480 |
| DLC0700OZG-T-1 | Other | 7.0 | 800×480 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| HV070WS1-1E2 | HYDIS | 7.0 | 1024×600 |
| LA070WV1-TD01 | LG Display | 7.0 | 800×480 |
| LA070WV1-TD04 | LG Display | 7.0 | 800×480 |
| NL8048AC19-13 | NLT | 7.0 | 800×480 |
| AM-1024600-070H | Other | 7.0 | 1024×600 |
| AM-800480STMQW-00 | AMPIRE | 7.0 | 800×480 |
| AV080WSM-NW3 | BOE | 8.0 | 1024×600 |
| C080VW02 V0 | AUO | 8.0 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| G070Y2-T02 | Innolux | 7.0 | 800×480 |
| LB080WV3-A3 | LG Display | 8.0 | 800×480 |
| LTA061B2E0F | TOSHIBA | 6.1 |
