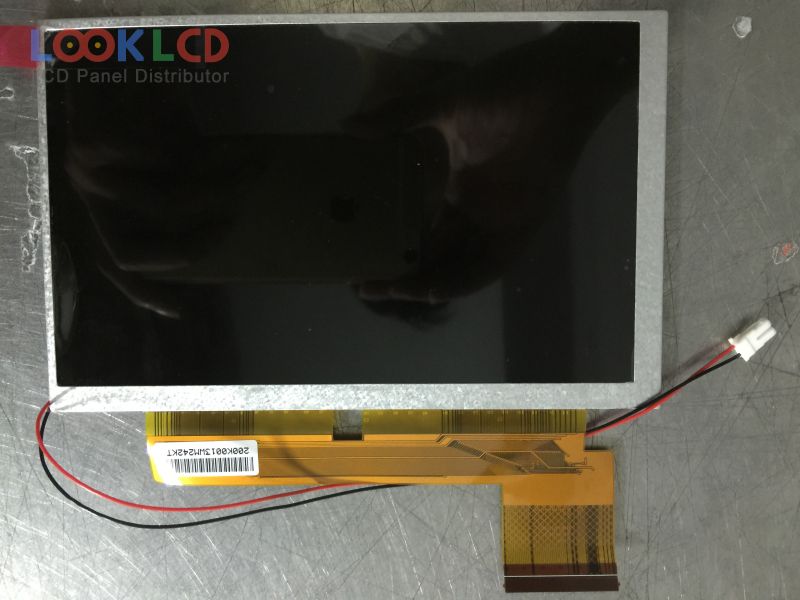

| Part Number | CLAA070LH01AW |
| Mark | CPT |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 600 |
| CR | 800:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | CPT |
| Panel Modell | CLAA070LH01AW |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 152.4×91.44 mm |
| skizzéieren | 165×104×7.55 mm |
| Uewerfläch | Antiglare, Reflection 4.0% (Typ.) |
| Hellegkeet | 600 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 40 (Max.)(Tr+Td) |
| Vue Wénkel | 55/55/60/30 (Min.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 7S2PWLEDWithout Driver |
| Signal Interface | TTL (1 ch, 6-bit), 60 pins |
| Input Volt | 3.3/13.0/18.0/-6.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Applikatioun | CNS |
| CLAA070LB01CW | CPT | 7.0 | 800×480 |
| CLAA070LD0DCW | CPT | 7.0 | 800×480 |
| CLAA070LJ01CW | CPT | 7.0 | 800×480 |
| CLAA070MA21BW | CPT | 7.0 | 800×600 |
| CLAA070ND26CW | CPT | 7.0 | 1024×600 |
| CLAA070ND28CW | CPT | 7.0 | 1024×600 |
| CLAA070ND36CW | CPT | 7.0 | 1024×600 |
| CLAA070NJ07CW | CPT | 7.0 | 1024×600 |
| CLAA070NQ02 XN | CPT | 7.0 | 1024×600 |
| CLAA070WP06G XG | CPT | 7.0 | 800×1280 |
| 70WVW4A | SII | 7.0 | 800×480 |
| C070VVN03.3 | AUO | 7.0 | 800×480 |
| HSD062IDW1-A02 | HannStar | 6.2 | 800×480 |
| LB070WV7-TD01 | LG Display | 7.0 | 800×480 |
| LQ058Y5DG30A | SHARP | 5.8 | 800×480 |
| LQ065T5GG63 | SHARP | 6.5 | 400×234 |
| LQ070T1LG01 | SHARP | 7.0 | 800×480 |
| PD040QT2 | E Ink | 4.0 | 320×240 |
| PW065XS1 | E Ink | 6.5 | 400×234 |
| TJ123NP01AA | TPO | 12.3 | 1280×480 |
