AMPIRE AM-800480STMQW-00 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

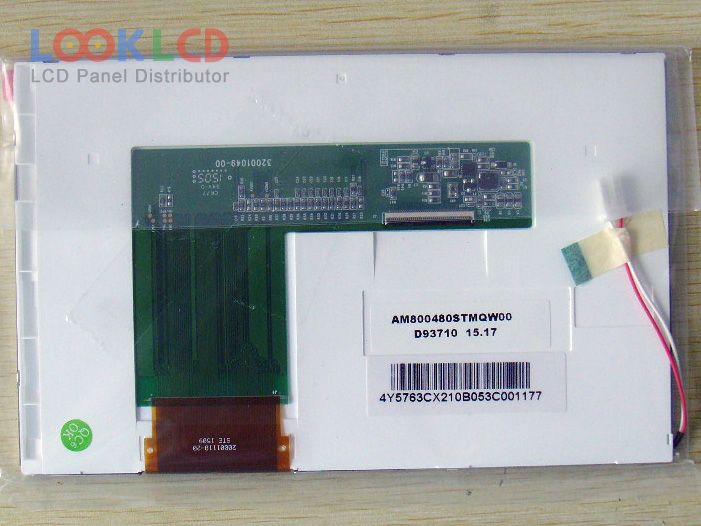

AM-800480STMQW-00

AM-800480STMQW-00
AM-800480STMQW-00
AM-800480STMQW-00 thumb AM-800480STMQW-00 thumb
Mark
AMPIRE
Gréisst
7.0
Applikatioun
CNS
Opléisung
800×480
Zesummesetzung
LCM
Hellegkeet
350
CR
400:1
Faarwen
262K
Backlight
WLED
Interface
TTL
In Stock
11
Spezifikatioune

Part Number AM-800480STMQW-00
MarkAMPIRE
Gréisst7.0
ApplikatiounCNS
Opléisung800×480
ZesummesetzungLCM
Hellegkeet350
CR400:1
Faarwen262K
GéigeliichtWLED
InterfaceTTL
Panel MarkAMPIRE
Panel ModellAM-800480STMQW-00
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst7.0 inch
Resolutioun800(RGB)×480 , WVGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich152.4×91.44 mm
skizzéieren165×104.44×5.7 mm
Uewerfläch
Hellegkeet350 cd/m² (Typ.)
Kontrast Verhältnis400:1 (Typ.)
weisen Faarwen262K (6-bit)
Äntwert Zäit5/11 (Typ.)(Tr/Td)
Vue Wénkel70/70/60/70 (Typ.)(CR≥10)(L/R/U/D)
Frequenz60Hz
Lampe Typ3S8PWLEDWithout Driver
Signal InterfaceParallel RGB (1 ch, 6-bit), 40 pins
Input Volt3.3V (Typ.)
ApplikatiounCNS
Famill Modell
AM-800480-050D Other 5.0 800×480
AM-800480LATMQW-TN0H AMPIRE 5.0 800×480
AM-800480LTMQW-00H-F AMPIRE 5.0 800×480
AM-800480LTMQW-W0H AMPIRE 5.0 800×480
AM-800480R3TMQW-B2H AMPIRE 7.0 800×480
AM-800480RCTMQW-00H AMPIRE 7.0 800×480
AM-800480RSTMQW-TA1H AMPIRE 7.0 800×480
AM-800480RWTMQW-TA4H AMPIRE 7.0 800×480
AM-800480STMQW-00 AMPIRE 7.0 800×480
AM-800480STMQW-W0 AMPIRE 7.0 800×480
