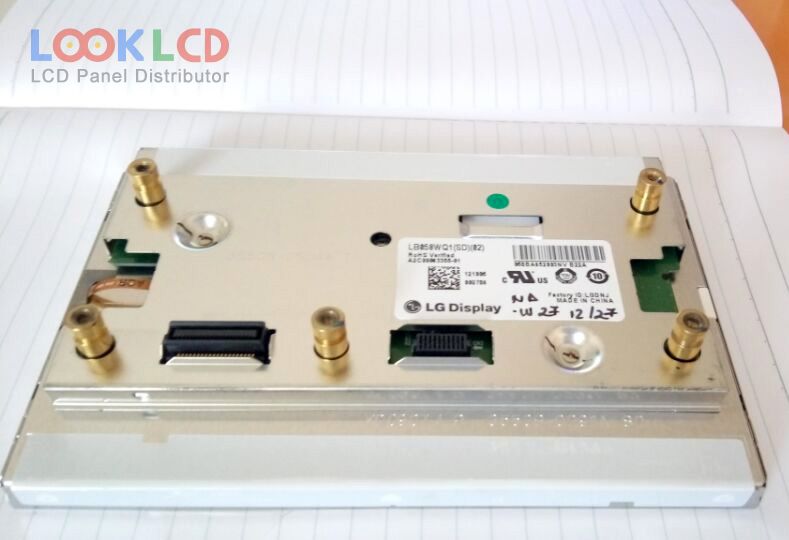

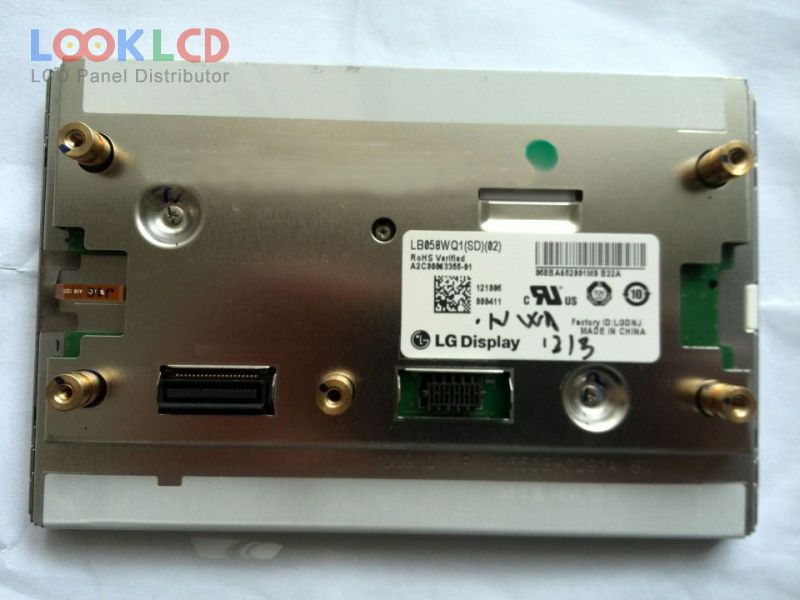

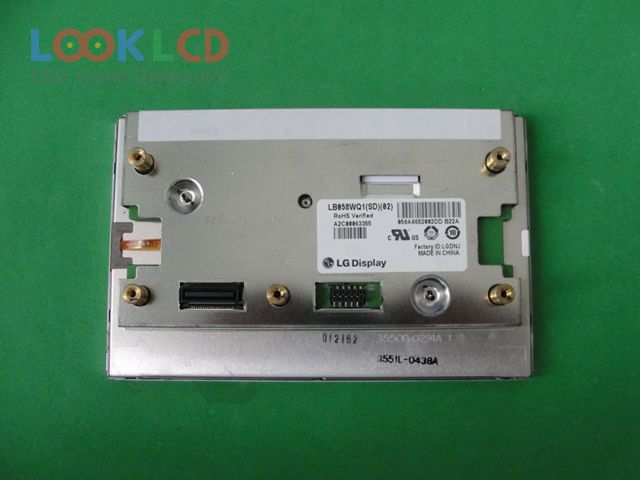

| Part Number | LB058WQ1-SD02 |
| Mark | LG Display |
| Gréisst | 5.8 |
| Applikatioun | CNS |
| Opléisung | 400×240 |
| Zesummesetzung | LCM |
| Hellegkeet | 470 |
| CR | 630:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | LG Display |
| Panel Modell | LB058WQ1-SD02 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 5.8 inch |
| Resolutioun | 400(RGB)×240 , WQVGA |
| Display Modus | IPS, Normally Black, Transmissive |
| aktiv Beräich | 126.36×75.84 mm |
| skizzéieren | 152×97 mm |
| Uewerfläch | Antiglare, Antireflection |
| Hellegkeet | 470 cd/m² (Min.) |
| Kontrast Verhältnis | 630:1 (Min.) |
| weisen Faarwen | 262K (6-bit) |
| Äntwert Zäit | 15/14 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/30/30 (Typ.)(CR≥100)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
| AT080TN64 | Innolux | 8.0 | 800×480 |
| C070VW02 V0 | AUO | 7.0 | 800×480 |
| CLAA090NA06CW | CPT | 9.0 | 1024×600 |
| G070Y2-L01 | Innolux | 7.0 | 800×480 |
| LB058WQ1-SD03 | LG Display | 5.8 | 400×240 |
| LQ070T5DR02 | SHARP | 7.0 | 480×240 |
| LQ080Y5DZ30A | SHARP | 8.0 | 800×480 |
| P070BAG-CM1 | Innolux | 7.0 | 1024×600 |
| TJ123NP01BA | Innolux | 12.3 | 1280×480 |
| TM070RDH01 | Tianma | 7.0 | 800×480 |
