Innolux AT070TN84 V.1 Dateblat, Spezifizéierung, Aktien, Applikatioun www.looklcd-lu.com
LookLCD LookLCD

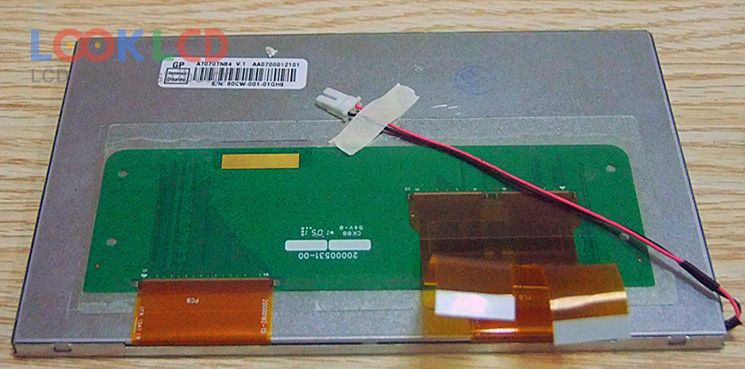

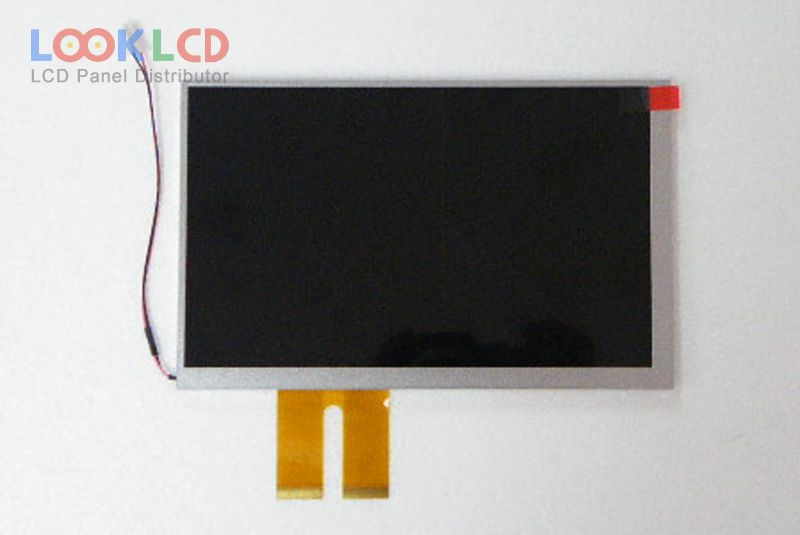

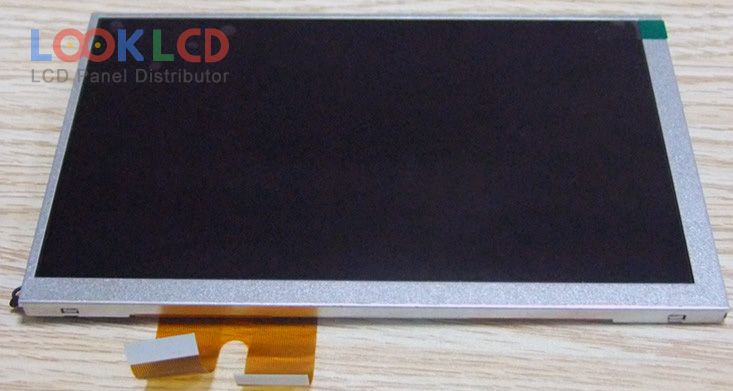

AT070TN84 V.1

AT070TN84 V.1
AT070TN84 V.1
AT070TN84 V.1
AT070TN84 V.1 thumb AT070TN84 V.1 thumb AT070TN84 V.1 thumb
Mark
Innolux
Gréisst
7.0
Applikatioun
CNS
Opléisung
800×480
Zesummesetzung
LCM
Hellegkeet
450
CR
500:1
Faarwen
262K
Backlight
WLED
Interface
TTL
In Stock
15488
Spezifikatioune

Part Number AT070TN84 V.1
MarkInnolux
Gréisst7.0
ApplikatiounCNS
Opléisung800×480
ZesummesetzungLCM
Hellegkeet450
CR500:1
Faarwen262K
GéigeliichtWLED
InterfaceTTL
Panel MarkINNOLUX
Panel ModellAT070TN84 V.1
Panel Typ a-Si TFT-LCD , LCM
Panel Gréisst7.0 inch
Resolutioun800(RGB)×480 , WVGA
Display ModusTN, Normally White, Transmissive
aktiv Beräich152.4×91.44 mm
skizzéieren165×104×6.3 mm
UewerflächAntiglare
Hellegkeet450 cd/m² (Typ.)
Kontrast Verhältnis500:1 (Typ.)
weisen Faarwen262K (6-bit)
Äntwert Zäit10/15 (Typ.)(Tr/Td)
Vue Wénkel70/70/50/70 (Typ.)(CR≥10)(L/R/U/D)
Lampe Typ3S9PWLEDWithout Driver
Signal InterfaceParallel RGB (1 ch, 6-bit), 60 pins
Input Volt3.3/10.4/16.0/-7.0V (Typ.)(VCC/AVDD/VGH/VGL)
ApplikatiounCNS
Famill Modell
AT070TN01 Innolux 7.0 480×234
AT070TN07 V.D Innolux 7.0 480×234
AT070TN82 Innolux 7.0 800×480
AT070TN83 V.3 Innolux 7.0 800×480
AT070TN84 Innolux 7.0 800×480
AT070TN90 V.1 Innolux 7.0 800×480
AT070TN92 Innolux 7.0 800×480
AT070TN92 V.1 Innolux 7.0 800×480
AT070TN92 V.1 TP Innolux 7.0 800×480
AT070TN93 Innolux 7.0 800×480
