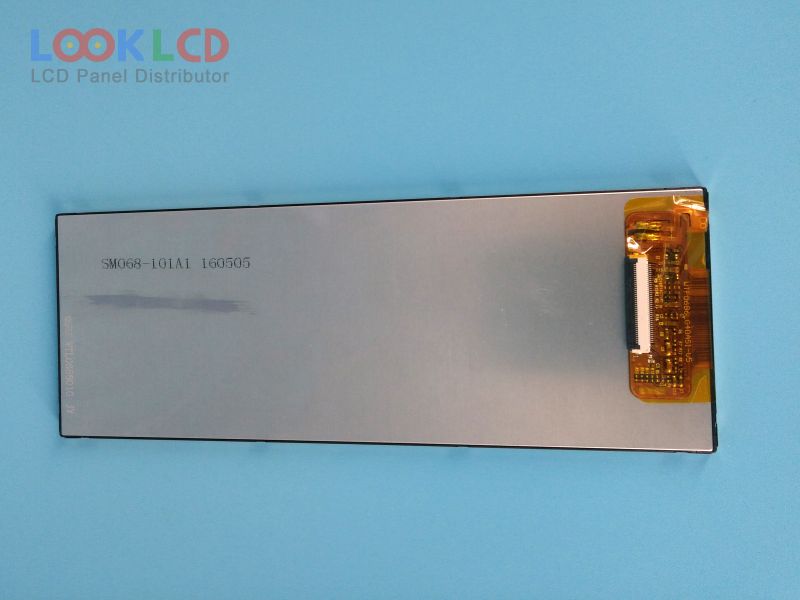

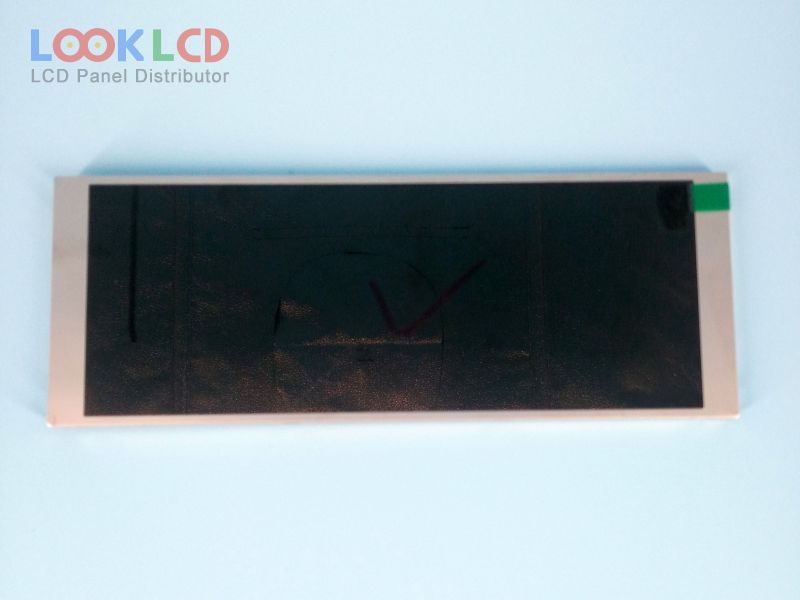

| Part Number | ND068-101A1 |
| Mark | |
| Gréisst | 6.8 |
| Applikatioun | CNS |
| Opléisung | 1280×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 700 |
| CR | 1000:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | |
| Panel Modell | ND068-101A1 |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 6.8 inch |
| Resolutioun | 1280(RGB)×480 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 160.59×60.22 mm |
| skizzéieren | 181×66.6×7.15 mm |
| Uewerfläch | |
| Hellegkeet | 700 cd/m² (Typ.) |
| Kontrast Verhältnis | 1000:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193160% |
| Äntwert Zäit | 20 (Typ.)(Tr+Td) |
| Vue Wénkel | 60/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S6PWLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 40 pins |
| Input Volt | 1.8/3.3/9.7/18/-8V (Typ.)(VCC/VDD/AVDD/VGH/VGL) |
| Applikatioun | CNS |
