| Part Number | LAJ080W001A |
| Mark | TPO |
| Gréisst | 8.0 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | 500:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | TPO |
| Panel Modell | LAJ080W001A |

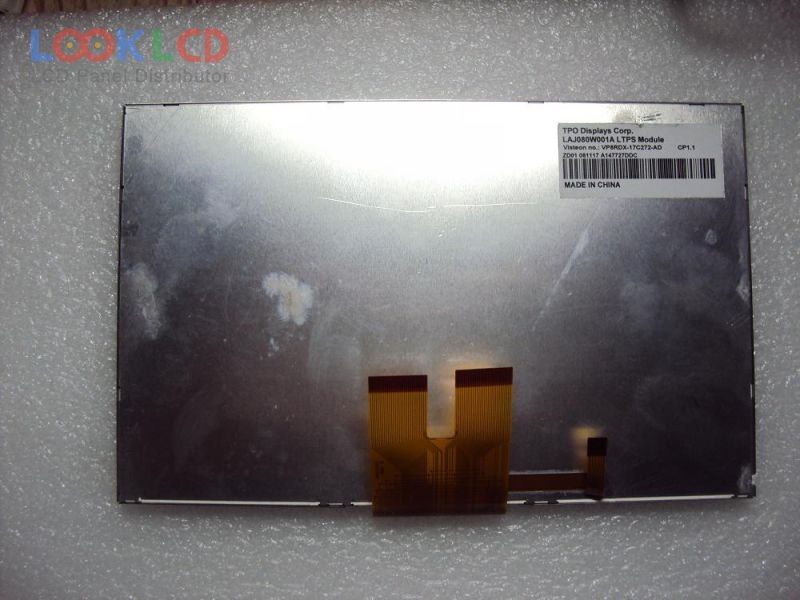

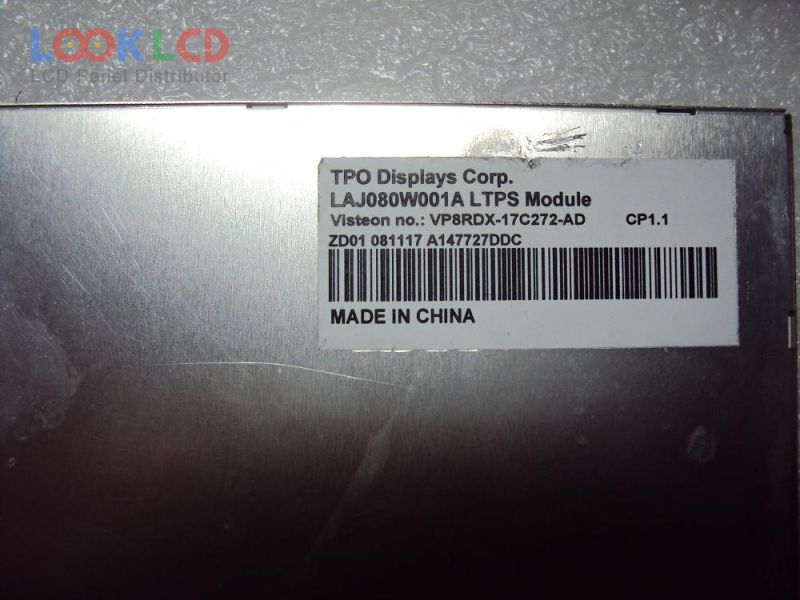

| Panel Typ | LTPS TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 174×104.4 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | 500:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193150% |
| Äntwert Zäit | 4.5/7.5 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/70/50 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 6-bit), 60 pins |
| Applikatioun | CNS |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| L5F30614T65 | SANYO | 8.0 | 800×480 |
| LA080WV3-SD01 | LG Display | 8.0 | 800×480 |
| LAJ080W001A | TPO | 8.0 | 800×480 |
| LAJ084T001A | TPO | 8.4 | 800×600 |
| LD080WX2-SMN1 | LG Display | 8.0 | 800×1280 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LS800JT9001 | Innolux | 8.0 | 800×600 |
| N080ICE-GB0 Rev.B1 | Innolux | 8.0 | 800×1280 |
| TM080VDSP01 | Tianma | 8.0 | 1200×1920 |
| A070FW03 V7 | AUO | 7.0 | 480×234 |
| CLAA061LA0ACW | CPT | 6.1 | 800×480 |
| CLAA069LC01XW | CPT | 7.0 | 800×480 |
| CLAA070LFB1 CW | CPT | 7.0 | 800×480 |
| DD070NA-02A | Innolux | 7.0 | 800×480 |
| FG0700K5DSSWBG01 | Data Image | 7.0 | 800×480 |
| G121X1-L01 | Innolux | 12.1 | 1024×768 |
| LQ080Y5DG03 | SHARP | 8.0 | 800×480 |
| LQ5AW136T | SHARP | 5.0 | 320×234 |
| PA079DS1T3 | E Ink | 7.9 | 480×234 |
