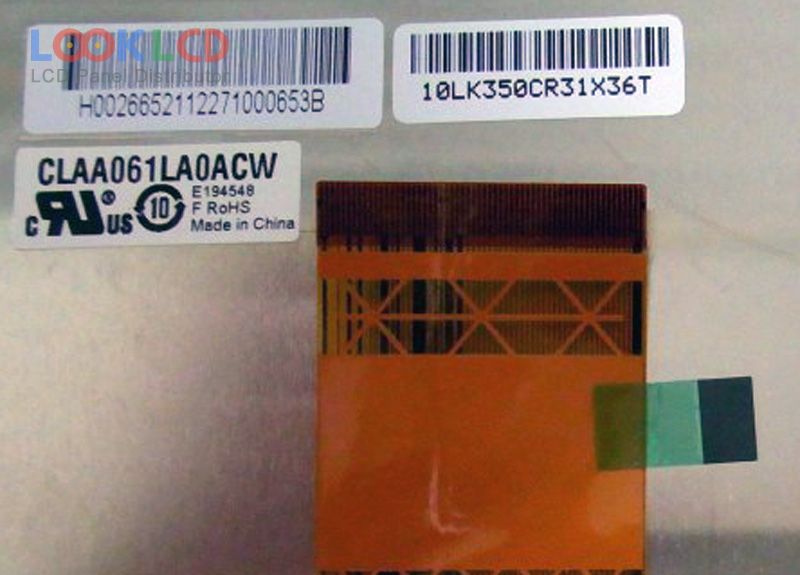

| Part Number | CLAA061LA0ACW |
| Mark | CPT |
| Gréisst | 6.1 |
| Applikatioun | CNS |
| Opléisung | 800×480 |
| Zesummesetzung | LCM |
| Hellegkeet | 500 |
| CR | 400:1 |
| Faarwen | 262K |
| Géigeliicht | WLED |
| Interface | TTL |
| Panel Mark | CPT |
| Panel Modell | CLAA061LA0ACW |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 6.1 inch |
| Resolutioun | 800(RGB)×480 , WVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 136.2×72 mm |
| skizzéieren | 149×82.9×6.32 mm |
| Uewerfläch | Antiglare, Hard coating (3H) |
| Hellegkeet | 500 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | 262K (6-bit), CIE193170% |
| Äntwert Zäit | 7/13 (Typ.)(Tr/Td) |
| Vue Wénkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 6S4PWLEDWithout Driver |
| Signal Interface | TTL (1 ch, 6-bit), 60 pins |
| Input Volt | 3.3/9.2/18/-6V (Typ.)(DVDD/AVDD/VGH/VGL) |
| Applikatioun | CNS |
