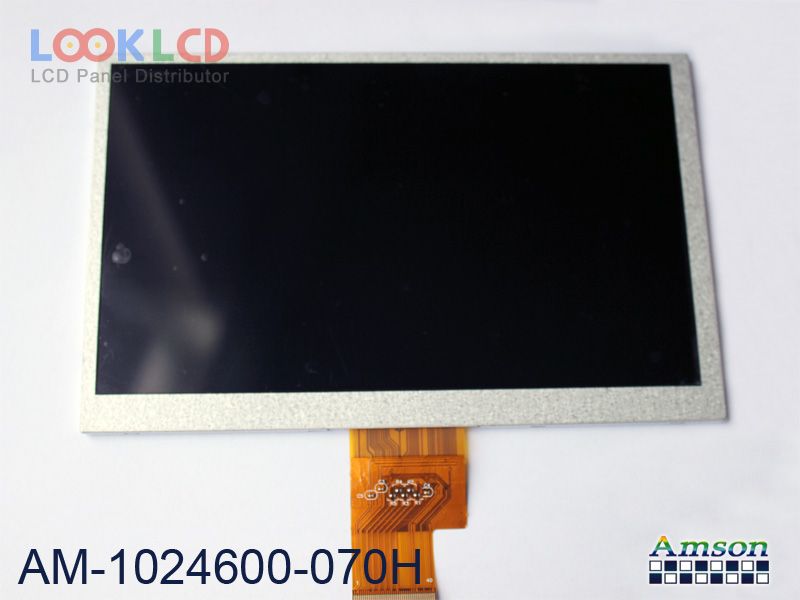

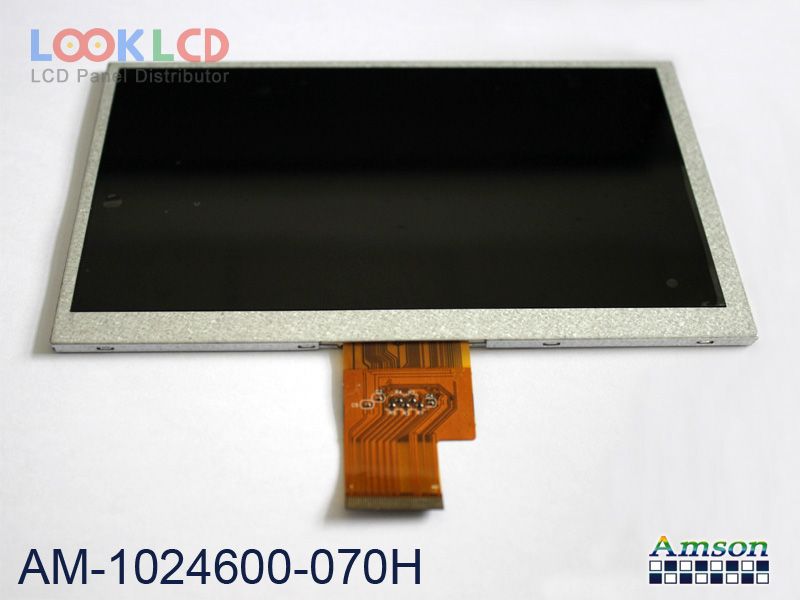

| Part Number | AM-1024600-070H |
| Mark | Other |
| Gréisst | 7.0 |
| Applikatioun | CNS |
| Opléisung | 1024×600 |
| Zesummesetzung | LCM |
| Hellegkeet | |
| CR | |
| Faarwen | 262K/16.7M |
| Géigeliicht | WLED |
| Interface | LVDS |
| Panel Mark | Amson |
| Panel Modell | AM-1024600-070H |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 7.0 inch |
| Resolutioun | 1024(RGB)×600 , WSVGA |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 153.6×90 mm |
| skizzéieren | 165.75×105.39×3.7 mm |
| Uewerfläch | |
| Hellegkeet | |
| Kontrast Verhältnis | |
| weisen Faarwen | 262K/16.7M (6-bit / 6-bit + Dithering) |
| Äntwert Zäit | |
| Vue Wénkel | |
| Frequenz | 60Hz |
| Lampe Typ | WLEDWithout Driver |
| Signal Interface | LVDS (1 ch, 6/8-bit), 40 pins |
| Input Volt | 3.3V (Typ.) |
| Applikatioun | CNS |
