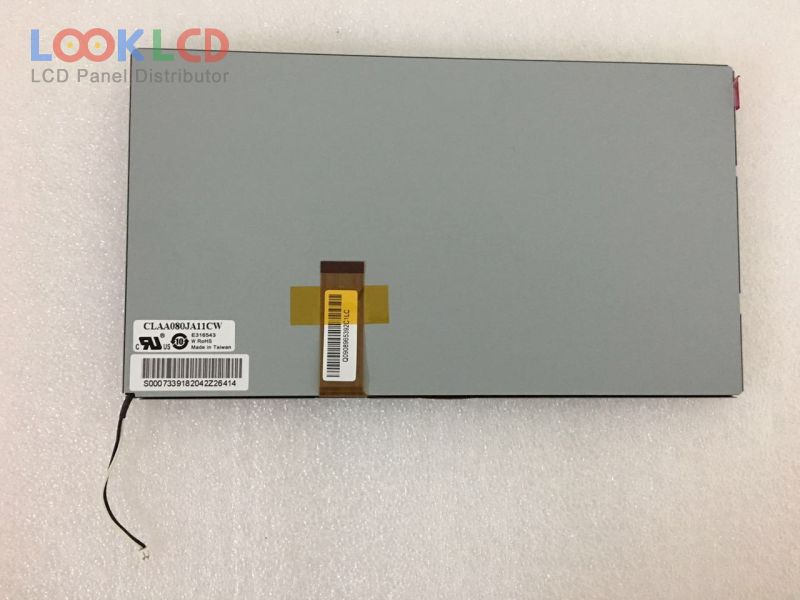

| Part Number | CLAA080JA11CW |
| Mark | CPT |
| Gréisst | 8.0 |
| Applikatioun | CNS |
| Opléisung | 480×220 |
| Zesummesetzung | LCM |
| Hellegkeet | 250 |
| CR | 400:1 |
| Faarwen | Full color |
| Géigeliicht | WLED |
| Interface | Analog |
| Panel Mark | CPT |
| Panel Modell | CLAA080JA11CW |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 480(RGB)×220 |
| Display Modus | TN, Normally White, Transmissive |
| aktiv Beräich | 180.72×94.27 mm |
| skizzéieren | 193×108.3 mm |
| Uewerfläch | Antiglare |
| Hellegkeet | 250 cd/m² (Typ.) |
| Kontrast Verhältnis | 400:1 (Typ.) |
| weisen Faarwen | Full color , CIE193145% |
| Äntwert Zäit | 30 (Tr+Td) |
| Vue Wénkel | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampe Typ | 3S7PWLED |
| Signal Interface | TFT Specific Analog RGB, 26 pins |
| Input Volt | 5/5/18/-6V (Typ.)(VCC/AVDD/VGH/VGL) |
| rohs: | |
| Applikatioun | CNS |
| CLAA080JA11CW | CPT | 8.0 | 480×220 |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA080UA01 | CPT | 8.0 | 1600×768 |
| CLAA080WQ02 XG | CPT | 8.0 | 800×1280 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| CLAA089NA0FCW | CPT | 8.9 | 1024×600 |
| A070VW05 V0 | AUO | 7.0 | 800×480 |
| C065VL01 V0 | AUO | 6.5 | 800×480 |
| C070VW02 V1 | AUO | 7.0 | 800×480 |
| CLAA090LC41CW | CPT | 9.0 | 800×480 |
| DLC0700CZG-6 | Other | 7.0 | 800×480 |
| LA060N01-SD01 | LG Display | 6.0 | 720×272 |
| LA123WF1-SL01 | LG Display | 12.3 | 1920×720 |
| LQ070Y5DG30 | SHARP | 7.0 | 800×480 |
| LTE052T-45 | Philips | 5.0 | 320×234 |
| TFD58W22MW | TOSHIBA | 5.8 | 400×234 |
