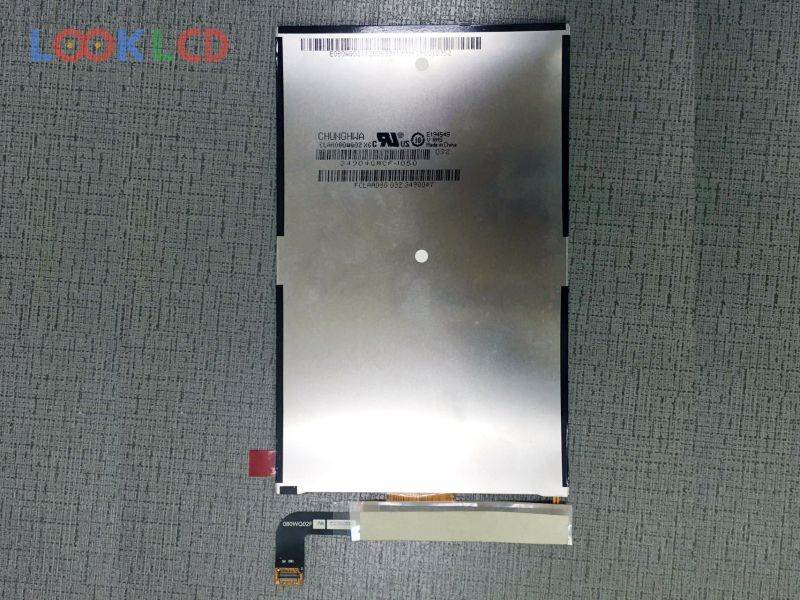

| Part Number | CLAA080WQ02 XG |
| Mark | CPT |
| Gréisst | 8.0 |
| Applikatioun | PAD |
| Opléisung | 800×1280 |
| Zesummesetzung | LCM |
| Hellegkeet | 400 |
| CR | 800:1 |
| Faarwen | 16.7M |
| Géigeliicht | WLED |
| Interface | MIPI |
| Panel Mark | CPT |
| Panel Modell | CLAA080WQ02 XG |
| Panel Typ | a-Si TFT-LCD , LCM |
| Panel Gréisst | 8.0 inch |
| Resolutioun | 800(RGB)×1280 , WXGA |
| Display Modus | HFFS, Normally Black, Transmissive |
| aktiv Beräich | 107.64×172.224 mm |
| skizzéieren | 114.6×184.1×3.65 mm |
| Uewerfläch | Glare (Haze 0%), Hard coating (3H) |
| Hellegkeet | 400 cd/m² (Typ.) |
| Kontrast Verhältnis | 800:1 (Typ.) |
| weisen Faarwen | 16.7M (8-bit), CIE193150% |
| Äntwert Zäit | 25 (Typ.)(Tr+Td) |
| Vue Wénkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampe Typ | 3S7PWLEDWithout Driver |
| Signal Interface | MIPI (4 data lanes), 34 pins |
| Input Volt | 1.8/3.3V (Typ.)(VCCI/VDDI) |
| Applikatioun | PAD |
| CLAA080LA0ACW | CPT | 8.0 | 800×480 |
| CLAA080LA0BCW | CPT | 8.0 | 800×480 |
| CLAA080LB0AXV | CPT | 8.0 | 800×480 |
| CLAA080LG01CW | CPT | 8.0 | 800×480 |
| CLAA080LG02AW | CPT | 8.0 | 800×480 |
| CLAA080MB0DCW | CPT | 8.0 | 800×600 |
| CLAA080NA12 CW | CPT | 8.0 | 1024×600 |
| CLAA080WQ02 XN | CPT | 8.0 | 800×1280 |
| CLAA080WQ08 XN | CPT | 8.0 | 800×1280 |
| CLAA080XA03BW | CPT | 8.0 | 1024×768 |
| B080EAN02.0 | AUO | 8.0 | 800×1280 |
| B101UAN01.C | AUO | 10.1 | 1920×1200 |
| B116HAT03.1 | AUO | 11.6 | 1920×1080 |
| EJ101IA-02A | Innolux | 10.1 | 1280×800 |
| HJ080NA-04L | Innolux | 8.0 | 1024×768 |
| HV121WX5-121 | HYDIS | 12.1 | 1280×800 |
| LQ079L1SX02 | SHARP | 7.9 | 1536×2048 |
| LTL101AL06-803 | Samsung | 10.1 | 1280×800 |
| VVX07F023B00 | Panasonic | 7.0 | 1200×1920 |
| VVX07H005A00 | Panasonic | 7.0 | 800×1280 |
